Muaj Bearings

Muaj Bearings

Khoom Taw Qhia

Industrial Bearings yog ib feem tseem ceeb ntawm cov cuab yeej siv tshuab niaj hnub. Lawv lub luag haujlwm tseem ceeb yog los txhawb lub tshuab hloov lub cev, txo cov kev sib txhuam coefficient ntawm kev txav, thiab xyuas kom meej qhov tseeb ntawm kev sib hloov. Cov khoom muaj kev sib txhuam coefficient tsawg, siab txwv ceev, qauv yooj yim, tsis tshua muaj nqi tsim khoom, siab precision thiab tsis tas yuav tsum muaj kev saib xyuas tsis tu ncua. Peb cov Bearings muaj ntau daim ntawv thov. Lawv haum rau hnyav thiab cuam tshuam load, precision instruments, tsis tshua muaj suab nrov motor, tsheb, maus taus, metallurgy, dov zeb, mining, roj av, ntawv, cement, qab zib, thiab lwm yam industries thiab dav siv machinery.

Specification

Dimension Range: ID 80mm - 1200mm;

Hom: ib kab, ob kab, plaub kab tapered menyuam bearings, hauv metric lossis nti;

Ib kab, ob kab, peb-kab lossis plaub-kab cylindrical roller bearings, hauv metric lossis nti;

Khoom siv: GCr15SiMn, Carburizing Steel G20Cr2Ni4A, 100CrMo7-4, Imported Timken lossis Ovako Steel.

Qib Precision: P5, P4;

Cage qauv: Pin-type Cage, Pressed Cage, Welding Cage;

Qhov zoo: Tapered rollers thiab Cylindrical rollers yog tsim los ntawm peb tus kheej, nrog lub logarithmic nkhaus, uas yog qhov zoo heev rau kev nce cov kabmob kev pabcuam-lub neej rau kev lag luam bearings.

Kev kho deg tshwj xeeb: Kev kho Phosphating rau cov nplhaib sab hauv lossis cov nplhaib sab nrauv.

Daim ntawv thov: Rolling mills, Sendzimir mills (rau carbon steel, stainless hlau, tooj dag, thiab lwm yam; kub los yog txias mills, 12- siab los yog 24- siab), Crushers, Pithead hnyav tsheb, tshuab cuab yeej, thiab lwm yam.

Yam khoom:

1. Ob chav kab tapered menyuam bearings, dav siv nyob rau hauv rolling mills kev lag luam.

Hom Hom: 06.CT33808/P5, HM266446/10CD/47XA/P5

Daim ntawv thov: Italian Rolling Mill Factory

Structure: Khoom nplhaib sab nraud ntxiv rau 2- daim nplhaib puab;

Txoj kab uas hla: ID 381/OD 546.1 * 222.25 mm; Luj: 159 kg;

2. Plaub-kab tapered menyuam bearings, feem ntau yog siv rau dov mills.

Hom Hom: 15.CT33964/CH, 332060

Daim ntawv thov: Steel Rolling Mill Factory

Structure: 3-pieces txheej nplhaib ntxiv rau 2- daim puab nplhaib;

Khoom siv: Carburizing Steel G20Cr2Ni4A

Txoj kab uas hla: ID 431.8 / OD 635 * 355.6 mm; Luj: 385 kg;

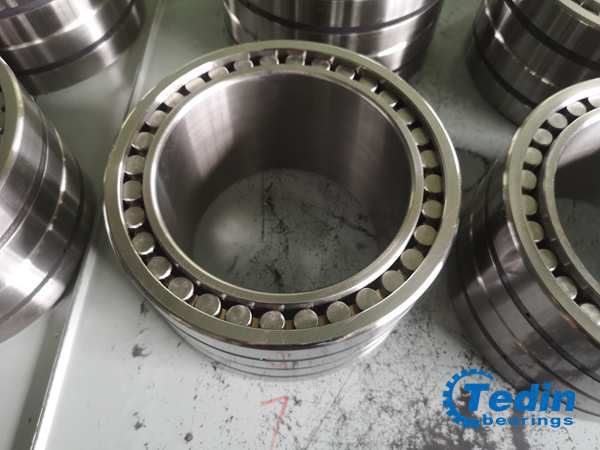

3. Plaub-kab cylindrical cov menyuam bearings, siv rau dov mills, steel kev lag luam.

Hom Hom: FC3042120 / P4

Daim ntawv thov: Rolling zeb sawv ntsug

Structure: 2-cov nplhaib sab nraud ntxiv rau lub nplhaib sab hauv;

Khoom siv: GCr15SiMn, tooj dag tawb

Txoj kab uas hla: ID 150 / OD 210 * 120 mm;

Hom Hom: 650RX2841C, 515194A (FAG), FCDP130180650,650RV9212 (NSK)

Txoj kab uas hla: ID 650 / OD 920 * H670mm; Luj: 1510 kg;

Daim ntawv thov: Steel Rolling Mills, ua haujlwm yob bearing

Structure: 2-pieces txheej nplhaib ntxiv rau 2- daim puab nplhaib;

Khoom siv: Case Carburizing Steel G20Cr2Ni4A

Rollers: nrog logarithmic profile

Cage Structure: Pin vuam;

Case Qhov tob: Ntau dua lossis sib npaug li 3 hli;

4. Z-mills thaub qab bearings, feem ntau yog siv rau thaub qab yob ntawm Sendzimir dov mills.

Bearing Hom: Peb-kab Tag Nrho Cov Cylindrical Cov Menyuam Bearings, tsis muaj tawb.

Hom Code: NNCF112684 /P4;

Qhov Loj: ID 55 / OD 130 * 84mm;

Back up bearing Cheebtsam: Lub nplhaib puab, Lub nplhaib sab nraud, tooj dag tawb.

Cov kabmob hom: Peb-kab Cylindrical Cov Menyuam Bearings, nrog tooj dag tawb.

Ib qho xwm txheej ntawm Bearings siv rau Sendzimir dov mills:

20- siab mills:

NNCF2660168X nrog ID 130mm / OD 300.2 * H170mm (Qhov siab tuaj yeem hloov kho)

NNCF3680181X nrog ID 180mm / OD 406.42 * H 181mm (Qhov siab tuaj yeem hloov kho)

12- siab mills:

NNCF3680171X nrog ID 180mm / OD 406.42 * H 171mm (Qhov siab tuaj yeem hloov kho),

NNCF3680224X nrog ID 180mm / OD 406.42 * H 224mm (Qhov siab tuaj yeem hloov kho)

NNCF43110205X nrog ID 215mm / OD 550 * H 205mm (Qhov siab tuaj yeem hloov kho)

5. Ua kab rau cov kabmob chais: (tapered rollers thiab cylindrical rollers)

Qhov zoo: Peb tuaj yeem tsim cov qauv ntawm cov logarithmic nkhaus thiab sib tsoo cov menyuam qhov profile raws li.

Rollers Qhov tseeb: Chav 2, Chav Kawm 1;

Cov menyuam txoj kab uas hla: 10mm - 160mm;

Peb tapered rollers yog dav siv nyob rau hauv cua turbine main bearings, high-speed railway, dov zeb bearings, hnyav industries.

Ua Kab ntawm cov kabmob rollers
