Hla cov menyuam kabmob yog TEDIN cov khoom tseem ceeb, muaj cov kabmob hla cylindrical rau cov menyuam kabmob thiab hla cov kabmob tapered menyuam kabmob. xws li: RA/RB/CRB/NRXT/RE/RU/CRB/CRBH/CRBF/XR/JXR series hla cov menyuam bearings. Peb cov khoom siv dav siv rau kev lag luam robots, cov lus teb ntawm cov chaw machining, cov khoom siv kho mob, ntsuas ntsuas, rotating qhov chaw ntawm cov khoom siv, cov rooj sib dhos precision, thiab lwm yam.
Dab tsi yog Crossed Roller Bearings?
Ib tug crossed roller bearing yog ib hom kabmob teb uas siv cov cylindrical rollers teem rau hauv cov qauv crisscross, nrog rau txhua tus menyuam taw qhia ntawm 90 degree kaum sab xis ntawm ib qho nyob ib sab ntawm nws. Qhov kev npaj no tso cai rau hla cov menyuam bearings tuaj yeem tiv taus radial, axial, thiab lub sijhawm thauj khoom, yog li lawv tuaj yeem hloov kho dual-cov kabmob, rau cov ntawv thov uas muaj qhov txwv tsis pub siv. Thiab vim hais tias cov rollers tsim kab kev sib cuag nrog cov raceways, crossed roller designs muaj siab nruj heev thiab tsawg deflection nyob rau hauv load. Cov yam ntxwv no ua rau hla cov menyuam bearings zoo tagnrho rau rotating motion Cheebtsam xws li teb actuators thiab rotary pob splines.
Qhov zoo ntawm Hla Cov Menyuam Bearings
Muaj zog Load-bearing Capacity
Nws tuaj yeem tiv taus qhov loj radial thiab axial loads, thiab nws tuaj yeem tiv taus qee qhov qaij quab yuam.
Zoo Rigidity
Vim yog siv cov txheej txheem sib dhos, nws muaj kev nruj nruj thiab tuaj yeem ua kom ntseeg tau tias ntau dhau deformation thiab kev vibration yuav tsis tshwm sim thaum lub sij hawm kev kub ceev.
Siab Precision
Kev tsim khoom precision yog siab, uas tuaj yeem ua kom ruaj khov thiab raug ntawm nws txoj haujlwm.
Lub neej ua haujlwm ntev
Vim yog siv cov ntaub ntawv zoo thiab cov txheej txheem tsim khoom, nws muaj lub neej ua haujlwm ntev.
Yooj yim rau nruab
Cov qauv yooj yim, yooj yim rau nruab, haum rau ntau yam khoom siv kho tshuab.
Kev ua haujlwm yooj yim
Kev sib txhuam me me thiab kev ua haujlwm du tuaj yeem txo qhov kev siv hluav taws xob thiab kub ntawm cov cuab yeej siv tshuab.
Kev ntseeg siab
Qhov chaw sib cuag ntawm cov khoom dov thiab cov nplhaib sab hauv thiab sab nraud yog qhov loj, yog li cov kabmob muaj peev xwm thauj khoom thiab qaug zog ua haujlwm tau zoo heev, ua kom lub sijhawm ruaj khov ntawm cov khoom siv.
Siab ceev
Lub centrifugal quab yuam ntawm cov khoom dov yog me me, yog li qhov kev txwv ceev ntawm cov kabmob yog siab, thiab nws tuaj yeem tswj kev ruaj ntseg thiab raug raws li kev ua haujlwm siab.
Yooj Yim Kho
Nws tuaj yeem yooj yim lubricated thiab ntxuav, txo cov nqi kho.
Kev tiv thaiv ib puag ncig
Piv nrog rau cov kabmob zawv zawg ib txwm muaj, hla cov menyuam bearings muaj kev sib txhuam qis dua.
-
![RE15013 Hla Cov Menyuam Bearing]()
RE15013 Hla Cov Menyuam BearingRE15013 Hla Cov Menyuam Bearing muaj cov qauv tsim, ntau- kev txhawb nqa kev taw qhia, thiab txhim khu kev sib hloov raug. Zoo tagnrho rau robotics, teb rooj, thiab precision automation. Kev caiNtau -
![RE16025 Hla Cov Menyuam Bearing]()
RE16025 Hla Cov Menyuam BearingRE16025 hla cov menyuam bearing muab kev sib hloov du, sib npaug kev txhawb nqa, thiab txhim khu kev qha precision hauv qhov chaw kaw ntom ntom. Ib qho kev xaiv zoo rau cov khoom siv txav, neeg hlau,Ntau -
![RE10020 Hla Cov Menyuam Bearing]()
RE10020 Hla Cov Menyuam BearingRE10020 precision cross roller bearing engineered rau cov khoom siv kom nruj, qis -torque rotation. Cov yam ntxwv muaj xws li kev thauj khoom ruaj khov, ntau qib raug, kev xaiv ua ntej, thiab covNtau -
![RE10016 Hla Cov Menyuam Bearing]()
RE10016 Hla Cov Menyuam BearingTxhim kho tshuab precision nrog RE10016 Nyias -Section Hla Cov Menyuam Bearing. Tsim los rau kev faib khoom sib xws, qhov deflection tsawg, thiab ntev - kev ntseeg siab thoob plaws cov ntawv thovNtau -
![RE9016 Hla Cov Menyuam Bearing]()
RE9016 Hla Cov Menyuam BearingUa kom zoo dua koj cov qauv tsim nrog RE9016 Hla Cov Menyuam Bearing featuring nruj qauv, du txav, thiab zoo heev ntau - muaj peev xwm thauj khoom.Ntau -
![RE8016 Hla Cov Menyuam Bearing]()
RE8016 Hla Cov Menyuam BearingRE8016 Hla Cov Menyuam Bearing nrog nyias -section profile, rigidity siab, tsis tshua muaj torque fluctuation, thiab meej load tuav. Haum rau automation, robotics, teb theem, thiab compact assemblies.Ntau -
![RE50050 Hla Cov Menyuam Bearing]()
RE50050 Hla Cov Menyuam BearingRE50050 hla cov menyuam kabmob tsim rau cov tshuab loj loj.. Siab rigidity,. Kev sib hloov ruaj khov,. Compact qauv. Hom zoo tagnrho rau hnyav axial thiab lub sijhawm thauj khoom.Ntau -
![RE7013 Hla Cov Menyuam Bearing]()
RE7013 Hla Cov Menyuam BearingRE7013 hla cov menyuam bearing muab lub peev xwm thauj khoom zoo dua, kev sib hloov meej, thiab lub neej ua haujlwm ntev. Zoo tagnrho rau robotics, industrial automation, precision rotary tables,Ntau -
![RE6013 Hla Cov Menyuam Bearing]()
RE6013 Hla Cov Menyuam BearingRE6013 hla cov menyuam kabmob: compact, siab -rigidity, du torque. Zoo meej rau robotics, rotary rooj, thiab precision automation.Ntau -
![XSU140414 Hla Cov Menyuam Bearing]()
XSU140414 Hla Cov Menyuam BearingXSU14 series hla cov menyuam kabmob. Integrated Inner / Outer Ring Hom,. Ob qho tib si rau kev sib hloov hauv lub nplhaib thiab lub nplhaib sab nraud;Ntau -

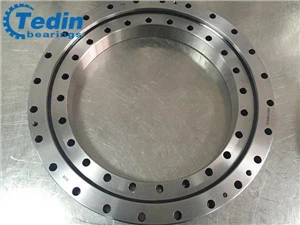

![XSU080398 Hla Cov Menyuam Bearing]()
XSU080398 Hla Cov Menyuam BearingXSU Hla Cov Menyuam Bearing. Hla Cov Menyuam slewing Bearing tsis muaj iav. Loj: 360x435x25.4mm;. Structure: seals ntawm ob qhov ntau thiab tsawg;Ntau -
![RE20030 Hla Cov Menyuam Bearing]()
RE20030 Hla Cov Menyuam BearingTsim los ntawm hwm cov kabmob steel, RE20030 muab kev lag luam txhim khu kev qha thiab txuas ntxiv kev pab cuam lub neej nyob rau hauv precision machinery.Ntau
Vim Li Cas Xaiv Peb
Siab Zoo
Peb txaus siab rau kev ua haujlwm ntawm peb cov khoom thiab xyuas kom meej tias txhua tus ua tau raws li peb cov qauv nruj rau kev ua tau zoo.
Khoom siv Advanced
Lub tshuab, cuab yeej lossis cov cuab yeej tsim los nrog cov thev naus laus zis thiab kev ua haujlwm kom ua tiav cov haujlwm tshwj xeeb nrog ntau dua precision, efficiency thiab kev ntseeg tau.
Pab neeg tshaj lij
Peb cov kws tshaj lij pab pawg sib koom tes thiab sib txuas lus zoo nrog ib leeg, thiab tau cog lus los muab cov txiaj ntsig zoo. Lawv muaj peev xwm los daws cov teeb meem nyuaj thiab cov haujlwm uas xav tau lawv cov kws tshaj lij thiab kev paub dhau los.
One-stop Solution
Ntawm peb cov chaw tsim khoom, peb muab cov pob tiav uas suav nrog txhua yam xav tau los pib koj, suav nrog kev cob qhia, kev teeb tsa thiab kev txhawb nqa.
Tus nqi sib tw
Peb muab cov khoom lag luam zoo dua lossis kev pabcuam ntawm tus nqi sib npaug. Yog li ntawd peb muaj kev loj hlob thiab loyal cov neeg siv khoom.
Hom Hla Cov Menyuam Bearings
Muaj ntau ntau hom kev hla cov menyuam bearings muaj. Feem ntau hom yog cylindrical roller bearing. Hom kabmob no muaj cov menyuam cylindrical uas muaj nyob rau hauv qhov chaw los ntawm ob txoj kab-style rings. Cov qauv no ua rau lawv zoo tagnrho rau cov ntawv thov uas xav tau siab precision thiab raug.
Lwm hom hla cov menyuam kabmob yog cov kabmob kheej kheej kheej kheej. Hom kabmob no muaj cov menyuam kheej kheej kheej kheej uas muaj nyob rau hauv qhov chaw los ntawm ob txoj kab-style rings. Qhov kev tsim no ua rau lawv zoo tagnrho rau cov ntawv thov uas xav tau siab precision thiab raug, tab sis kuj tuaj yeem tiv taus hnyav.
Qhov thib peb hom crossed roller bearing yog tapered roller bearing. Hom kabmob no muaj cov kabmob tapered uas muaj nyob rau hauv qhov chaw los ntawm ob txoj kab-style rings. Qhov kev tsim no ua rau lawv zoo tagnrho rau cov ntawv thov uas xav tau siab precision thiab raug, tab sis kuj tuaj yeem tiv taus hnyav.
Thaum kawg, plaub hom hla cov menyuam bearing yog rab koob rau cov kabmob. Hom kabmob no nta ib rab koob-style cov menyuam uas muaj nyob rau hauv qhov chaw los ntawm ob txoj kab-style rings. Qhov kev tsim no ua rau lawv zoo tagnrho rau cov ntawv thov uas xav tau siab precision thiab raug, tab sis kuj tuaj yeem tiv taus hnyav.
Daim ntawv thov ntawm Hla Cov Menyuam Bearings
Robotics Thiab Automation
Hla cov menyuam bearings yog dav siv nyob rau hauv robotics thiab automation systems. Nws compact tsim, siab tawv thiab zoo heev raug ua rau nws zoo tagnrho rau robotic caj npab, xaiv thiab tso cov cav tov thiab automated los ua ke kab. Cov bearings no kom du, meej txav, nce efficiency thiab txo downtime.
Tshuab cuab yeej
Hauv kev lag luam tshuab cuab yeej, hla cov menyuam bearings tau dav siv hauv tshuab milling, lathes, grinders thiab lwm yam khoom siv. Lawv lub peev xwm los lis ob qho tib si radial thiab axial loads ua rau lawv thawj qhov kev xaiv rau kev ua haujlwm siab precision machining.
Semiconductor Manufacturing
Kev lag luam semiconductor xav tau qhov siab tshaj plaws thiab ruaj khov thaum lub sijhawm tsim khoom. Hla cov menyuam bearings muab qhov zoo tshaj plaws qhov tseeb, tsis tshua muaj kev sib txhuam thiab suab nrov tsawg, ua rau lawv tsim nyog siv rau hauv cov khoom siv semiconductor xws li wafer handlers thiab tshuaj xyuas cov cav tov.
Khoom siv kho mob
Hla cov menyuam bearings ua lub luag haujlwm tseem ceeb hauv cov khoom siv kho mob xws li CT scanners, X-ray tshuab thiab phais neeg hlau. Lawv txoj kev txav mus los yooj yim thiab muaj peev xwm thauj khoom muaj peev xwm ua kom pom tseeb, tso cai rau kev kho mob kom raug thiab muaj kev nyab xeeb dua cov txheej txheem phais.
Aerospace Thiab Defense
Aerospace thiab kev tiv thaiv daim ntawv thov xav tau cov kabmob uas tuaj yeem tiv taus huab cua thiab muab kev ua tau zoo. Hla cov menyuam bearings ua tau zoo nyob rau hauv cov cheeb tsam no, muab kev sib txhuam qis, siab tawv, thiab tiv thaiv kev poob siab thiab kev co, ua rau lawv haum rau siv nyob rau hauv satellite systems, radar khoom, thiab missile kev taw qhia systems.
Optical Thiab Imaging Instruments
Hla cov menyuam bearings yog siv ntau yam khoom siv kho qhov muag thiab cov duab kos duab, nrog rau cov tsom iav, tsom iav thiab lub koob yees duab lens sib dhos. Lawv txoj kev sib hloov du thiab ruaj khov kev tswj xyuas pab ua kom pom tseeb, ua haujlwm zoo.
Ntim thiab Luam Ntawv
Hauv kev ntim khoom thiab tshuab luam ntawv, hla cov menyuam bearings pab txhawb kev txav ntawm cov menyuam yaus, kom ntseeg tau cov kev sib raug zoo thiab cov ntawv luam zoo ib yam. Lub siab tawv ntawm cov bearings no kuj pab tiv thaiv kev co, txo cov luam ntawv tsis xws luag, thiab ua kom tag nrho cov khoom tsim tau.
Industrial Robots Thiab Cnc Machining
Muaj cov neeg hlau thiab CNC machining chaw cia siab rau hla cov menyuam bearings kom meej thiab rov ua dua, ua kom cov txheej txheem tsim tau zoo thiab txhim kho cov khoom zoo.
Textile Machinery
Textile machinery xws li looms thiab spinning machinery tau txais txiaj ntsig los ntawm kev muaj peev xwm thauj khoom siab thiab qhov tseeb ntawm cov menyuam hla cov kabmob, ua rau cov ntaub zoo dua qub thiab txo cov khoom siv tu.
Kev lag luam tsheb
Hauv kev siv tsheb, hla cov menyuam bearings yog siv ntau yam khoom siv, nrog rau cov kauj ruam, cov khoom sib txuas thiab cov khoom raug tshem tawm, kom ntseeg tau tias kev ua tau zoo thiab txhim khu kev qha.
Cov qauv txheej txheem ntawm crossed roller bearings Crossed roller bearings yog tsim los ntawm cov nplhaib puab, cov nplhaib sab nrauv, cov menyuam, cov tawb thiab lwm qhov chaw. Ntawm lawv, cov rollers yog cylindrical thiab faib nruab nrab ntawm sab hauv thiab sab nraud. Lub nruj haum nruab nrab ntawm cov rollers thiab sab hauv thiab sab nrauv muab tag nrho cov kabmob siab rigidity thiab load-bearing muaj peev xwm.
Lub hauv paus ntsiab lus ua haujlwm ntawm crossed roller bearings Thaum hla cov menyuam bearings ua haujlwm, cov chais yog teem rau hauv ib qho kev sib txuas, thiab cov ces kaum sib cuag nrog lub nplhaib sab hauv thiab sab nraud yog 90 degrees. Cov qauv tsim tshwj xeeb no ua rau cov kabmob tuaj yeem tiv taus lub zog radial, lub zog quab yuam thiab lub cev sib npaug tib lub sijhawm, yog li txhim kho lub peev xwm thauj khoom thiab kev ua haujlwm ruaj khov.
Cov khoom ntawm Crossed Roller Bearings
Feem ntau cov pob bearings yog ua los ntawm ib hom hlau hu ua high carbon chromium steel, feem ntau hu ua chrome steel. Qhov no yog siv rau yog vim li cas ntawm tus nqi thiab durability. Bearings kuj yog tsim los ntawm lwm yam ntaub ntawv xws li stainless hlau, ceramics thiab yas.Chrome steel yuav corrode yog hais tias raug ya raws, qhov twg corrosion kuj yuav tsum tau, bearings ua los ntawm 440 qib stainless hlau feem ntau siv. Qhov no yog ib qho nyuaj heev, sib nqus hlau nrog zoo corrosion kuj tab sis tsis haum rau siv nrog dej ntsev thiab ntau yam tshuaj. 316 qib stainless hlau yog siv rau ntau corrosive daim ntaub ntawv tab sis nws yog softer npaum li cas tsuas yog siv tau nyob rau hauv qhov chaw loads thiab ceev yog tsawg.Ceramics (zirconia thiab silicon nitride) yog zoo rau corrosive heev los yog huab cua kub siv thaum muaj ntau hom yas haum. rau qhov zoo rau corrosion kuj zoo heev txawm hais tias tsuas yog haum rau qis load thiab qis ceev. 316 stainless hlau bearings, ceramic bearings thiab yas bearings yog tsis-sib nqus.
Yuav Ua Li Cas Ua Tau Hla Cov Menyuam Bearings
Ntxuav
Thaum disassembling tus ntoo khaub lig cov kabmob rau kev tshuaj xyuas, thawj zaug siv cov duab thaij duab thiab lwm txoj hauv kev los ua cov ntaub ntawv zoo li. Tsis tas li ntawd, tshawb xyuas cov roj nplua nyeem ntxiv thiab coj mus kuaj cov roj nplua nyeem ua ntej ntxuav cov kabmob cross roller.
a. Kev ntxuav ntawm tus ntoo khaub lig cov kabmob yog muab faib ua kev tu kom huv thiab ntxuav kom zoo, thiab daim phiaj hlau tuaj yeem muab tso rau hauv qab ntawm lub thawv.
b. Thaum ntxuav ntxhib, siv txhuam hauv cov roj kom tshem tawm cov roj los yog adhesions. Nyob rau lub sijhawm no, yog tias tus ntoo khaub lig cov kabmob hloov pauv hauv cov roj, yuav tsum ceev faj tias qhov chaw dov yuav raug puas los ntawm cov khoom txawv teb chaws.
c. Thaum lub sij hawm ntxuav zoo, maj mam tig tus ntoo khaub lig-roller bearing nyob rau hauv cov roj, uas yuav tsum tau ua tib zoo nqa tawm.
Cov tshuaj ntxuav tu feem ntau yog nruab nrab tsis muaj dej tsis muaj roj lossis roj av, thiab qee zaum sov lye thiab lwm yam yog siv raws li xav tau. Tsis muaj teeb meem dab tsi yog siv los ntxuav, nws yuav tsum tau lim ntau zaus kom nws huv si. Tom qab ntxuav, tam sim ntawd siv cov roj los tiv thaiv xeb los tiv thaiv xeb ntawm tus ntoo khaub lig cov kabmob.
Kev tshuaj xyuas thiab kev txiav txim
Txhawm rau txiav txim siab seb puas tuaj yeem rov siv tau cov kabmob hlais hlais, nws yog qhov yuav tsum tau kuaj xyuas nws qhov tseeb qhov tseeb, kev sib hloov qhov tseeb, kev tshem tawm sab hauv, mating nto, raceway nto, tawb thiab sealing nplhaib. Cov txiaj ntsig kev soj ntsuam tuaj yeem txiav txim siab los ntawm cov neeg siv inertial cross roller bearings lossis cov neeg txawj ntse hauv cross roller bearings.
Cov txheej txheem kev txiav txim sib txawv raws li kev ua tau zoo thiab qhov tseem ceeb, kev tshuaj xyuas lub voj voog, thiab lwm yam. Yog tias muaj kev puas tsuaj hauv qab no, tus ntoo khaub lig cov kabmob yuav tsum tsis txhob rov qab siv dua thiab yuav tsum tau hloov.
Pollution Control
Hla cov menyuam bearings yog rhiab rau kev sib kis. Khaws qhov chaw ua haujlwm kom huv si thiab tsis muaj plua plav, av thiab lwm yam khoom uas tuaj yeem nkag mus rau hauv cov kabmob. Siv cov ntsaws ruaj ruaj thiab cov tiv thaiv los tiv thaiv cov kabmob los ntawm cov kab mob sab nraud.
Txhim kho kom raug
Xyuas kom tseeb tias hla cov menyuam bearings raug ntsia kom raug raws li cov chaw tsim khoom cov lus qhia. Nruab cov bearings rau ntawm ncej thiab vaj tse kom raug, thiab tsis txhob siv zog ntau dhau thaum lub installation.
Ua Ib Alliance
Tshawb xyuas qhov kev sib dhos ntawm cov ncej thiab cov vaj tsev kom paub tseeb tias lawv tau sib raug zoo nrog ib leeg thiab cov bearings. Misalignment tuaj yeem ua rau lub sijhawm ntxov ntxov thiab tsis ua haujlwm.
Dab tsi yog Txoj Cai Ua Haujlwm ntawm Crossed Roller Bearings
01
Roller Kev Npaj
Hla cov menyuam bearings muaj ob pawg cylindrical rollers teem ntawm txoj cai kaum rau ib leeg. Qhov kev npaj no zoo li tus ntoo khaub lig lossis "X" zoo li, los ntawm cov kabmob tau txais nws lub npe.
02
Inner Thiab Outer Rings
Hla cov menyuam bearings muaj ob lub nplhaib: lub nplhaib puab (los yog lub nplhaib puab) thiab lub nplhaib sab nraud (los yog lub nplhaib sab nraud). Lub nplhaib puab yog tsau nyob rau hauv qhov chaw, thaum lub nplhaib sab nraud yog dawb los tig.
03
Roller Guide
Cov txheej txheem hla cov menyuam tso cai rau cov chais hu rau sab hauv thiab sab nraud ntawm ntau lub ntsiab lus ib txhij. Qhov no taw tes-hu rau tsim muab superior load-nqa peev xwm thiab rigidity thaum txo kev sib txhuam.
Rau Industrial Robots, Dab tsi yog Cov txiaj ntsig ntawm Hla Cov Menyuam Bearings
Siab heev Precise Rotation
Cov rollers yog positioned nyob rau hauv ib tug 90 degree ntsug crosswise configuration nrog ib leeg nyob rau hauv lub crossed roller bearing. Nruab nrab ntawm cov rollers, spacers lossis spacers yog muab tso rau kom tiv thaiv cov menyuam los ntawm tilting thiab cov chais los ntawm kev saib ib leeg, yog li tiv thaiv lub rotating torque. Tus nqi nce. Tsis tas li ntawd, ntawm ib sab ntawm cov menyuam, tsis muaj kev sib cuag lossis xauv qhov tshwm sim; Nyob rau tib lub sijhawm, vim tias cov nplhaib sab hauv thiab sab nrauv yog cov khoom sib cais, qhov sib txawv tuaj yeem hloov tau, thiab qhov kev hloov pauv siab tuaj yeem tsim tau txawm tias ua ntej siv.
Kev teeb tsa thiab kev ua haujlwm yooj yim
Tom qab cov chais thiab tawb tau mounted, lawv txuas ua ke, ua rau lub installation kuj ncaj nraim.
Nrog ntau dua axial thiab radial Loads
Kev hla cov menyuam kabmob tuaj yeem ua haujlwm loj dua radial loads, axial loads, lub sijhawm thauj khoom, thiab lwm yam kev thauj khoom vim tias cov menyuam yob tau muab tso rau ntawm ib leeg ntawm 90 degree V-groove dov nto los ntawm spacers.
Txo qhov nqi ntawm cheeb tsam uas yuav tsum tau rau kev txhim kho
Lub nplhaib puab thiab sab nraud ntawm cov menyuam hla cov kabmob tau ua rau me me rau qhov kev txwv me me, thiab cov qauv ultra-nyias nyob ze rau qhov me me txwv, nrog kev nruj nruj, ua rau nws tsim nyog rau kev sib koom ua ke lossis kev sib hloov ntawm cov neeg hlau, nrog rau kev sib hloov ua haujlwm ntawm machining chaw. Cov ntxhuav, rotating seem ntawm manipulators, precision rotating ntxhuav, cov cuab yeej kho mob, ntsuas ntsuas, thiab IC cov cuab yeej tsim khoom tsuas yog qee qhov kev siv.
Yuav ua li cas xaiv tus Hla Cov Menyuam Bearings kom raug
Dimensions yog qhov tseem ceeb tshaj plaws parameter. Ua ntej tshaj plaws, koj yuav tsum paub qhov loj ntawm cov kabmob koj xav tau, lossis qhov loj ntawm cov khoom siv uas xav tau cov kabmob no, thiab tom qab ntawd koj tuaj yeem txiav txim siab qhov loj ntawm cov kabmob.
Vim hais tias tus ntoo khaub lig cov kabmob muaj ntau cov qauv txawm tias muaj qhov sib txawv ntawm qhov ntev, muaj cov nplhaib sab nraud cais hom (RB / RA / SX), lub nplhaib puab cais hom (RE), thiab tag nrho cov qauv (RU / CRBH). Tus yuam sij yog nyob ntawm seb qhov uas tsav qhov kev sib hloov yog nruab rau hauv cov kabmob puab lossis lub nplhaib sab nraud. Yog xav tau kev hloov lub nplhaib sab nraud, lub nplhaib puab sab hauv yuav tsum tau siv; Yog tias lub nplhaib sab hauv kev sib hloov qhov tseeb yog qhov yuav tsum tau siv, lub nplhaib puab lub nplhaib yuav tsum tau siv. Ob lub nplhaib sab hauv thiab sab nrauv yuav tsum muaj kev sib hloov ntau dua, uas yog tsim rau lub nplhaib sab hauv thiab sab nrauv tag nrho cov qauv.
Raws li cov txheej txheem kev teeb tsa, muaj ob pawg ntawm cov menyuam hla cov kabmob, ib qho yog cov nplhaib sab hauv thiab sab nraud nrog lub qhov txuas, zoo li slewing bearings, kev teeb tsa yooj yim, txuas ncaj qha rau cov khoom siv los ntawm kev sib txuas bolts; Lwm qhov yog tias muaj yog tsis muaj mounting qhov nyob rau hauv lub puab thiab sab rings, feem ntau yog los ntawm cov kabmob vaj tse thiab lub siab flange thiab cuam tshuam ntawm ncej thiab bearing txoj kab uas hla.
Dab tsi ntawm cov ntoo khaub lig siv yuav tsum paub seb nws puas tuaj yeem tiv taus cov khoom siv los ntawm cov khoom siv, thiab txiav txim siab seb nws puas tsim nyog raws li qhov muaj peev xwm ntawm cov cuab yeej tsim thiab cov ntsuas ntsuas ntawm cov kabmob sib thooj.
Hla cov menyuam bearings muaj nyob rau hauv 3 chav kawm raug, P5, P4 thiab P2. P2 qib qhov tseeb yog qhov siab tshaj plaws, thiab qhov tseeb ntawm cov kabmob yog txiav txim siab raws li qhov tseeb ntawm cov khoom siv.
Kev ceev faj rau kev siv Crossed Roller Bearings
Installation thiab lubrication
Nyob rau hauv tus ntoo khaub lig-cov menyuam bearing, txij li tag nrho cov zoo lithium-raws li roj tau raug ntsia, nws tuaj yeem ntsia ncaj qha tom qab siv. Txawm li cas los xij, piv nrog cov menyuam bearings dav dav, qhov ntim ntawm cov ntsiab lus qhov chaw me me, thiab nws yog ib qho hnyav dov qauv rau cov roj nplua nyeem, yog li nws yog ib qho tsim nyog yuav tsum tau ntxiv cov roj ib ntus.
Cov roj ntxiv yog nqa tawm los ntawm lub qhov roj uas txuas nrog cov roj hla ntawm lub nplhaib sab hauv thiab sab nraud. Thaum cov roj rov ua dua txhua 6 lub hlis mus rau 1 xyoos, thov siv tib hom roj ntxiv rau hauv cov kabmob.
Nyob rau tib lub sijhawm, tom qab cov roj puv lawm, thawj zaug kev sib hloov torque yuav nce nyob rau hauv ib lub sij hawm luv luv vim qhov kev tiv thaiv ntawm cov roj, thiab thaum cov roj ntau dhau los ntawm qhov sealing, nws yuav sai sai rov qab mus rau qhov qub torque nqi.
Kev tshuaj xyuas cov khoom ua ntej kev teeb tsa
Ntxuav lub vaj tsev lossis lwm qhov chaw mounting, tshem tawm cov av, thiab paub meej tias cov burrs ntawm txhua qhov yog qhov tseeb.
Mounting rau cov kabmob vaj tse lossis ncej
Vim hais tias nws yog ib tug nyias-walled bearing, nws nyhav qaij thaum nws yog ntsia. Siv cov yas rauj txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhuam nws, nws yuav tsum ua tib zoo coj mus rau hauv qhov sib npaug ntawm qhov sib npaug.
Mounting txoj kev ntawm sab compression flange
Tom qab muab lub sab compression flange rau txoj hauj lwm, pob zeb rov qab thiab tawm ob peb zaug nyob rau hauv lub circumferential kev taw qhia los kho txoj hauj lwm ntawm lub mounting bolts.
Thaum txhim kho lub compression ntsia liaj qhov rooj thiab zawm lub ntsia liaj qhov rooj los ntawm txhais tes, xyuas kom meej tias lub bolt tsis screwed nyob rau hauv vim lub deviation ntawm lub bolt qhov.
Kev nruj ntawm cov bolts compression tuaj yeem muab faib ua 3-4 theem los ntawm kev nruj ib ntus mus rau qhov kawg nruj. Cov ntsia hlau yog rov nruj dua nyob rau hauv qhov kev txiav txim ntawm kab pheeb ces kaum. Thaum zawm lub compression bolts ntawm lub nplhaib puab los yog lub nplhaib sab nraud uas tau muab faib ua ob ntu, Thaum lub sij hawm zawm txheej txheem, lub nplhaib sab nraud los yog lub nplhaib puab feem ntau hloov me ntsis thiab tig, kom qhov sib txawv ntawm lub nplhaib sab nraud lossis lub nplhaib sab hauv. lub nplhaib puab muab faib ua ob ntu tuaj yeem kho.
Kev ceev faj rau kev siv
Lub nplhaib puab lossis lub nplhaib sab nrauv muab faib ua ob ntu yog ua los ntawm cov rivets tshwj xeeb lossis bolts. Tom qab cov txiv ntoo raug kho, lawv tsis tuaj yeem sib cais thiab siv ncaj qha rau hauv cov kabmob vaj tsev. Nyob rau tib lub sijhawm, yog tias qhov kev txiav txim sib dhos ntawm lub spacer tsis raug, nws muaj kev cuam tshuam zoo rau kev sib hloov ntawm cov kabmob, yog li thov tsis txhob disassemble cov kabmob ntawm qhov xav tau.
Lub seam ntawm lub nplhaib puab los yog lub nplhaib sab nraud yuav yog me ntsis deviated. Ua ntej txhim kho cov kabmob vaj tse, loosen cov bolts uas kho lub nplhaib sab hauv lossis lub nplhaib sab nraud thiab kho nws nrog rauj yas ua ntej txhim kho. (Cov rivets ruaj yuav deform nrog cov kabmob vaj tsev)
Thaum txhim kho lossis disassembling, tsis txhob siv lub zog sab nraud rau kev kho rivet lossis ntsia liaj qhov rooj.
Thov them sai sai rau qhov ntev ntev ntawm cov khoom nruab. Nias lub flange los ntawm sab tuaj yeem nias lub nplhaib sab hauv lossis sab nraud ntawm sab.
Kev txhim kho ntawm Crossed Roller Bearings
Txawm hais tias lub fork roller bearing raug teeb tsa raug cuam tshuam rau qhov raug, lub neej, thiab kev ua haujlwm. Yog li ntawd, lub tuam tsev tsim thiab sib dhos yuav tsum tau kawm tag nrho cov installation ntawm bearings. Nws cia siab tias lub installation yuav ua raws li cov qauv kev ua haujlwm. Thaum txhim kho bearings, koj yuav tsum siv txoj kev kom raug thiab ua tib zoo mloog rau qee qhov teeb meem ntawm kev teeb tsa. Cov ntsiab lus yog raws li nram no:
Txoj Kev Txhim Kho
Hla cov menyuam bearings tuaj yeem muab faib ua ob pawg raws li kev teeb tsa. Ib qho yog tias ob qho tib si sab hauv thiab sab nrauv muaj qhov mounting qhov. Zoo li cov kabmob slewing, nws cov kev teeb tsa yog qhov yooj yim thiab txuas ncaj qha rau cov khoom siv los ntawm kev sib txuas bolts; Lwm qhov yog Tsis muaj qhov sib txuas hauv cov nplhaib sab hauv thiab sab nraud, feem ntau yog los ntawm kev cuam tshuam haum ntawm lub rooj zaum bearing thiab nias flange thiab lub puab txoj kab uas hla ntawm ncej thiab cov kabmob.
Cov txheej txheem kev teeb tsa ntawm cov kabmob sib txawv nyob ntawm tus qauv bearing, haum, thiab tej yam kev mob. Feem ntau, vim hais tias cov ncej tig feem ntau, lub nplhaib puab yuav tsum muaj kev cuam tshuam haum. Cylindrical bore bearings feem ntau nias nrog ib lub xovxwm los yog kub-haum. Nyob rau hauv daim ntawv thov scenario ntawm lub tapered qhov, nws yog ncaj qha ntsia rau ntawm tapered ncej thiab ntsia nrog ib lub tes tsho. Thaum ntsia rau hauv lub plhaub, feem ntau muaj ntau qhov kev tshem tawm haum thiab muaj kev cuam tshuam hauv lub nplhaib sab nraud. Nws feem ntau yog nias rau hauv nrog ib lub xovxwm, los yog tseem muaj ib txoj kev shrink haum ntawm kev txhim kho tom qab txias. Thaum cov dej khov qhuav yog siv los ua lub coolant thiab shrink haum yog ntsia, noo noo nyob rau hauv cov huab cua yuav condense rau saum npoo ntawm cov kabmob. Yog li ntawd, yuav tsum muaj kev tiv thaiv xeb kom tsim nyog.
Peb lub Hoobkas
LUOYANG TEDIN BEARING CO., LTD. -- muaj cov txheej txheem tsim khoom ntawm high-end rolling bearings, tsom rau R & D high-end bearings, customized bearings, thiab tshwj xeeb tsim precision bearings tau nyob rau hauv txoj hauj lwm ntawm Tuam Tshoj.
TEDIN muaj ntau yam tsis siv neeg ua cov kab thiab kev txhawb nqa rau cov menyuam bearings siab. Qib precision ntawm precision bearings tuaj yeem ncav cuag P5, P4, P2. TEDIN pab ntau tus neeg muas zaub tshwj xeeb tshaj yog nyob rau hauv precision tshuab cuab yeej, dov mills, precision rotary ntxhuav, industrial robots, high-speed railway, khiav tsheb, tub rog Radar, nyoob hoom qav taub phom, cua zog, thiab hnub ci zog, thiab lwm yam.
Peb Daim Ntawv Pov Thawj
FAQ
Peb lub tuam txhab yog ib qho ntawm cov hla cov menyuam bearings manufacturers hauv Suav teb. Xav tias dawb rau cov lag luam wholesale siab zoo hla cov menyuam bearings muag ntawm no los ntawm peb lub hoobkas. Tsis tas li, kev pabcuam customized muaj.
