Tapered roller bearings yog sib cais bearings nrog tapered raceway nyob rau hauv ob sab hauv thiab sab rings. Cov bearings tau muab faib ua ib kab, ob kab thiab plaub kab tapered menyuam bearings raws li tus naj npawb ntawm rollers loaded.Lawv mas siv rau bearing radial thiab axial ua ke loads. Piv nrog angular contact pob bearing, cov kabmob muaj peev xwm loj thiab qhov txwv ceev yog tsawg.
Tapered roller bearings yog dov cov kabmob uas tuaj yeem txhawb nqa axial quab yuam (piv txwv li, haum thrust bearings) thiab radial rog.Lub puab thiab txheej nplhaib raceways yog ntu ntawm lub khob hliav qab, thiab cov yob yog tapered kom cov conical nto ntawm raceways, thiab cov menyuam axes yog projected, txhua tus yuav ntsib ntawm ib qho chaw nyob rau hauv nruab nrab axis ntawm cov kabmob. Qhov no geometry ua rau cov lus tsa suab ntawm lub cones tseem coaxial, tsis muaj zawv zawg txav ntawm cov raceways thiab sab nraud txoj kab uas hla ntawm rollers.
Qhov zoo ntawm Tapered Cov Menyuam Bearings
Kev sib txhuam qis
Lub optimized roller kawg tsim thiab nto tiav ntawm lub flange (daim duab 1) txhawb lubricant zaj duab xis tsim, ua rau muaj kev sib txhuam qis. Qhov no kuj txo cov kev sib txhuam kub thiab flange hnav. Tsis tas li ntawd, cov bearings tuaj yeem tswj tau preload zoo dua thiab khiav ntawm cov suab nrov txo.
Lub neej ua haujlwm ntev
Lub crowned raceway profiles ntawm cov qauv tsim bearings thiab cov logarithmic raceway profiles ntawm SKF Explorer bearings optimize lub load faib raws qhov chaw tiv tauj, txo cov kev ntxhov siab peaks ntawm cov menyuam kawg (daim duab 2), thiab txo qhov rhiab heev rau misalignment thiab ncej deflection piv nrog cov pa ncaj ncaj raceway profiles (daim duab 3).
Txhim khu kev ua haujlwm ruaj khov
Optimized nto tiav ntawm qhov chaw sib cuag ntawm cov chais thiab raceways txhawb kev tsim ntawm hydrodynamic lubricant zaj duab xis.
Consistency ntawm cov menyuam Profiles thiab qhov ntau thiab tsawg
Cov menyuam sib xyaw ua ke hauv SKF tapered roller bearings yog tsim los rau qhov zoo sib xws thiab geometrical tolerances uas lawv xyaum zoo ib yam. Qhov no muab qhov zoo tshaj plaws load faib, txo cov suab nrov thiab kev co, thiab ua kom preload teem kom raug ntau dua.
Rigid Bearing Application
Ib kab ib kab tapered rau cov menyuam bearing feem ntau yog kho raws li tus thib ob tapered roller bearing. Los ntawm kev siv lub preload, ib daim ntawv thov kev coj tus kheej tuaj yeem ua tiav.
Khiav-hauv Lub Sij Hawm Nrog Txo Kub Kub Peaks
Tapered roller bearings feem ntau muaj lub sijhawm ua haujlwm, thaum lub sijhawm tsim qauv tapered roller bearing muaj kev sib txhuam loj, ua rau hnav. Cov nyhuv no yog pom raws li qhov kub thiab txias (daim duab 1). Nrog SKF tapered roller bearing designs, kev sib txhuam, kev sib txhuam kub thiab hnav tau txo qis, yog tias cov bearings tau mounted thiab lubricated kom raug.
Separable Thiab Interchangeable
Nyob ntawm tus qauv tsim, tapered cov menyuam bearings yog sib cais thiab cov khoom ntawm tib-loj bearings yog tag nrho interchangeable. Piv txwv li, ib kab tapered rau cov menyuam bearings yog sib cais (daim duab 4), piv txwv li lub nplhaib puab nrog rau cov menyuam thiab lub tawb sib dhos (cone) tuaj yeem sib cais los ntawm lub nplhaib sab nraud (khob). Qhov no ua kom yooj yim mounting, dismounting thiab tseem saib xyuas cov txheej txheem.
-
![Lub Teeb Ua Haujlwm Tapered Menyuam Cov Kab L570649 / L570610]()
Lub Teeb Ua Haujlwm Tapered Menyuam Cov Kab L570649 / L57...L570649 / L570610 yog lub luag haujlwm tsim nyog cov kabmob uas xav tau cov kev siv rau cov ntawv sau rau cov kev siv rau cov kev siv rau cov kev siv rau cov kev siv rau cov kev siv rau cov kev sivNtau -
![Plaub kab tapered cov menyuam cov kabmob lM451349dw -90104]()
Plaub kab tapered cov menyuam cov kabmob lM451349dw -90104Nta thiab cov txiaj ntsig:. - Ua kom khov Tqo / TQI tsim rau ntau yam mounting. - Customizable Clearance (BEP) rau kom meej yob pov tseg. - Txhim kho txoj kev ntev los ntawm cov khoom siv thiab covNtau -
![Super Precision Tapered Cov Menyuam Cov Kabmob 163150 / 163210H]()
Super Precision Tapered Cov Menyuam Cov Kabmob 163150 / 1...Cov Kabmob Hom: Ob Kab Tapered Cov Menyuam Cov Kabmob. Tus qauv hom: flanged khob, td hom. Cov Kabmob code: 163150 / 163210H. Qhov loj me: 150x2x92mm. Tawb: Machined tooj dag tawb;. Kev sib hloov: 0.Ntau -
![Precision Tapered Cov Kabmob 81630 / 81963CD]()
Precision Tapered Cov Kabmob 81630 / 81963CDSuper precision ob kab tapered cov kabmob roller {}} Cd yog ib tug neeg xaiv loj uas yuav tsum tau siv ntau dua ...Ntau -
![Super Precision Tapered Cov Kabmob]()
Super Precision Tapered Cov KabmobMuaj precision qib:. Radial Runout (Lub khob hliav qab ntxig): {0}}}} 015mm, 0.0030mm, 0.00 hli, 0.00 hli. Muaj loj:. Cov taub uas nyob rau hauv Interner ntau: 50mm {1}} hliNtau -
![Ob chav Kab Tapered Cov Menyuam Bearing EE749259DW/749334]()
Ob chav Kab Tapered Cov Menyuam Bearing EE749259DW/749334Ntiv loj ob kab tapered menyuam bearing (TDI hom): Hom Code: EE749259DW/749334Dimensions: 659.925x854.924x159.24mm; Precision Qib: Class P5; Khoom siv: GCr15SiMnNtau -
![High Precision Tapered Cov Menyuam Bearing]()
High Precision Tapered Cov Menyuam BearingMuaj hom: Ib-kab, sib phim, nti loj, metric loj;. Qib Precision: P5, P4, P2;. Txoj kab uas hla: 80-1200mm;. Cov khoom muaj: 100Cr6, GCr15, GCr15SiMn, Case-hardened Steel G20Cr2Ni4A;Ntau -
![TDO Ob Kab Kab Tapered Cov Menyuam Bearings]()
TDO Ob Kab Kab Tapered Cov Menyuam BearingsOb chav kab tapered menyuam bearing TDO hom HM266446/10CD Cov Kabmob Hom: TDO hom ob kab kab tapered cov menyuam kabmob Code: 06.CT33808/P5, HM266446/10CD/47XA/P5 Qauv: Ob chav khob, 2 cones, 1Ntau -
![TDI Ob Chav Kab Tapered Cov Menyuam Bearings]()
TDI Ob Chav Kab Tapered Cov Menyuam BearingsOb chav kab tapered menyuam bearing TDI hom TDI hom ob kab tapered cov menyuam bearing muaj ob lub nplhaib sab nraud (khob) thiab ib ob kab sab hauv lub nplhaib nrog ob lub menyuam thiab lub tawb sibNtau -
![Ob chav kab Tapered Cov Menyuam Bearing 32034T162X/DB]()
Ob chav kab Tapered Cov Menyuam Bearing 32034T162X/DBCov kabmob hom: Tapered cov menyuam kabmob 32034T162X / DB hauv DB khub;. Loj: 170x260x57mm, 170x260x162mm;. Qib Precision: P4;. Configuration: sib phim hauv Back-to-Back khub;. Daim ntawv thov:Ntau -
![Tapered Cov Menyuam Bearing 323122 P2]()
Tapered Cov Menyuam Bearing 323122 P2Cov kabmob hom: Ob chav kab tapered rau cov menyuam kabmob 323122. Qib Precision: ISO Class P2;. Loj: 110x180x56mm. Rotating Accuracy: 0.003mm. Tapered roller's profile: logarithmic profile. RatingNtau -

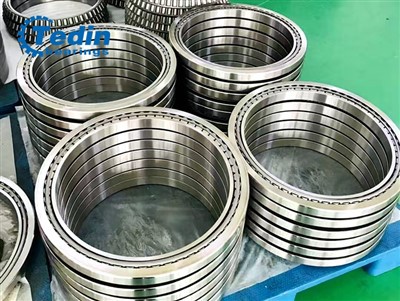

![L-Series Nyias Ntu Tapered Rau Cov Menyuam Bearings]()
L-Series Nyias Ntu Tapered Rau Cov Menyuam BearingsL-s-s-series ntu lo lus uas lo rau cov menyuam bearings - Kev Cog Lus Tsim Kev Ua Tau Zoo hauv cov ntawv thov uas muaj qhov tsawg thiab kev ntsuas yog qhov tseem ceeb. Cov kabmob no yog ...Ntau
Vim Li Cas Xaiv Peb
Siab Zoo
Peb txaus siab rau kev ua haujlwm ntawm peb cov khoom thiab xyuas kom meej tias txhua tus ua tau raws li peb cov qauv nruj rau kev ua tau zoo.
Khoom siv Advanced
Lub tshuab, cuab yeej lossis cov cuab yeej tsim los nrog cov thev naus laus zis thiab kev ua haujlwm kom ua tiav cov haujlwm tshwj xeeb nrog ntau dua precision, efficiency thiab kev ntseeg tau.
Pab neeg tshaj lij
Peb cov kws tshaj lij pab pawg sib koom tes thiab sib txuas lus zoo nrog ib leeg, thiab tau cog lus los muab cov txiaj ntsig zoo. Lawv muaj peev xwm los daws cov teeb meem nyuaj thiab cov haujlwm uas xav tau lawv cov kws tshaj lij thiab kev paub dhau los.
One-stop Solution
Ntawm peb cov chaw tsim khoom, peb muab cov pob tiav uas suav nrog txhua yam xav tau los pib koj, suav nrog kev cob qhia, kev teeb tsa thiab kev txhawb nqa.
Tus nqi sib tw
Peb muab cov khoom lag luam zoo dua lossis kev pabcuam ntawm tus nqi sib npaug. Yog li ntawd peb muaj kev loj hlob thiab loyal cov neeg siv khoom.
Hom Tapered Cov Menyuam Bearings
Deep Groove Pob Bearing
Qhov sib sib zog nqus groove pob bearing muaj cov qauv yooj yim thiab siv tau yooj yim, thiab yog ib hom kabmob nrog cov khoom loj tshaj plaws thiab cov ntawv thov dav tshaj plaws. Nws yog tsuas yog siv los tiv thaiv radial loads thiab kuj tiv taus tej yam axial loads. Thaum lub radial clearance ntawm cov kabmob yog nce, kev ua haujlwm ntawm angular contact bearing tuaj yeem tiv taus cov axial loj. Siv nyob rau hauv tsheb, tsheb laij teb, tshuab cuab yeej, motors, twj, agricultural machinery, textile machinery, thiab lwm yam.
Koob Bearing
Koob cov menyuam bearings yog nruab nrog nyias thiab ntev rollers (qhov ntev ntawm cov menyuam yog 3 mus rau 10 npaug ntawm txoj kab uas hla thiab txoj kab uas hla feem ntau tsis ntau tshaj 5 hli), yog li cov qauv radial yog compact, thiab lub puab txoj kab uas hla thiab load peev xwm yog. tib yam li cov ntawm lwm hom bearings. Qhov tsawg tshaj plaws txoj kab uas hla, tshwj xeeb tshaj yog haum rau kev txhawb nqa cov qauv nrog txwv radial mounting qhov ntev. Nyob ntawm daim ntawv thov, bearings lossis rab koob rau cov menyuam thiab lub tawb sib dhos tsis muaj lub nplhaib sab hauv tuaj yeem siv tau. Cov ntawv xov xwm saum npoo thiab lub qhov nyob hauv qhov chaw uas phim cov kabmob ncaj qha ua haujlwm sab hauv thiab sab nraud ntawm cov kabmob kom muaj peev xwm thauj khoom thiab kev ua haujlwm. Raws li nrog ferrule bearings, lub hardness ntawm raceway nto ntawm ncej los yog vaj tse bore. Lub machining raug thiab nto thiab nto zoo yuav tsum zoo ib yam li raceway ntawm bearing nplhaib. Hom kabmob no tsuas tuaj yeem tiv taus radial loads. Piv txwv li universal joint shafts, hydraulic twj, ntawv mills, pob zeb xyaum, tshuab cuab yeej gearboxes, tsheb thiab tsheb laij teb gearboxes, thiab lwm yam.
Angular Sib cuag Bearing
Angular contact pob bearings muaj qhov txwv ceev ceev thiab tuaj yeem tiv taus ob qho tib si longitudinal thiab axial loads, nrog rau cov ntshiab axial loads. Lub peev xwm axial load yog txiav txim siab los ntawm lub kaum sab xis ntawm kev sib cuag thiab nce nrog kev sib cuag lub kaum sab xis. Siv rau: roj twj, cua compressors, ntau hom kev sib kis, roj txhaj twj, tshuab luam ntawv.
Self-aligning Pob Bearing
Tus kheej-aligning pob bearing muaj ob kab ntawm cov pob steel, lub nplhaib puab muaj ob txoj kev sib tw, thiab lub nplhaib sab nrauv raceway muaj lub puab kheej kheej kheej kheej, uas muaj kev ua haujlwm ntawm tus kheej. Lub coaxial yuam kev vim winding ntawm lub ncej thiab deformation ntawm lub casing yuav tau txais kev them nyiaj thiab yog haum rau lub Cheebtsam nyob rau hauv uas lub rooj zaum lub qhov rooj tsis tuaj yeem ua kom nruj coaxially. Cov kabmob nruab nrab yog feem ntau raug rau radial load thiab tuaj yeem dais me me ntawm axial load thaum raug radial load. Nws feem ntau tsis yog siv los tiv thaiv cov axial dawb huv, xws li kev coj tus kheej axial load, thiab tsuas yog ib kab ntawm cov pob steel yog kev ntxhov siab. Feem ntau yog siv rau hauv cov tshuab ua liaj ua teb xws li kev sib xyaw ua ke, tshuab tshuab, tshuab ntawv, tshuab textile, tshuab ua haujlwm ntoo, choj cranes thiab tsav shafts.
Spherical Cov Menyuam Bearing
Spherical roller bearings muaj ob kab ntawm cov menyuam uas feem ntau siv los tiv thaiv radial loads thiab tuaj yeem tiv taus axial loads hauv ob qho tib si. Cov kabmob no muaj peev xwm ua haujlwm siab radial, tshwj xeeb tshaj yog tsim nyog rau kev ua haujlwm hnyav lossis kev vibration load, tab sis tsis tuaj yeem dais ntshiab axial load; zoo self-aligning kev ua tau zoo tuaj yeem them nyiaj rau tib yam kev ua yuam kev. Main siv lub tshuab ntawv, ceev reducer, railway tsheb qag, dov zeb iav lub rooj zaum, crusher, ntau yam industrial ceev reducers, thiab lwm yam.
Thrust Pob Bearing
Ib tug thrust pob bearing yog ib hom kev sib cais bearing. Lub nplhaib bearing "lub nplhaib" tuaj yeem sib cais los ntawm kev sib dhos ntawm lub tawb steel pob. Lub nplhaib ncej yog ib lub nplhaib sib tw nrog lub nplhaib, lub nplhaib lub rooj zaum yog lub nplhaib sib tw nrog lub rooj zaum lub qhov rooj, thiab muaj qhov sib txawv ntawm cov ncej thiab lub nplhaib. Thrust pob bearings tuaj yeem tsuas yog rho tawm cov axial load, ib-txoj kev thrust pob bearings tsuas yog dais lub axial load ntawm ib chav, thiab ob-txoj kev thrust pob bearings tuaj yeem dais axial load ntawm ob txoj kev. Thrust pob bearing tsis tuaj yeem txwv qhov kev ncua ntev ntawm lub axis, qhov txwv ceev yog tsawg heev. Ib-txoj kev thrust pob bearings tuaj yeem txwv qhov kev hloov pauv ntawm axial nyob rau hauv ib qho kev taw qhia ntawm ncej thiab lub plhaub, thiab ob txoj kev bearings tuaj yeem txwv qhov kev hloov ntawm axial hauv ob txoj kev. Feem ntau yog siv nyob rau hauv lub tsheb kauj vab mechanism, tshuab cuab tam spindle.
Thrust Cov Menyuam Bearing
Thrust roller bearings yog siv los dais axle loads uas yog axial loads. Longitudinal ua ke loads, tab sis longitudinal loads yuav tsum tsis txhob ntau tshaj 55% ntawm axial loads. Piv nrog rau lwm cov thrust roller bearings, hom kabmob no muaj kev sib txhuam coefficient qis dua, nrawm dua, thiab muaj peev xwm ua kom haum tus kheej. Cov menyuam ntawm 29000 hom kabmob yog asymmetrical kheej kheej cov menyuam, uas tuaj yeem txo cov txheeb ze zawv zawg ntawm tus pas nrig thiab kev sib tw hauv kev ua haujlwm, thiab cov menyuam yog ntev, loj hauv txoj kab uas hla, loj hauv cov lej thiab ntau yam.
Cylindrical Cov Menyuam Bearing
Rollers ntawm cylindrical roller bearings feem ntau yog coj los ntawm ob lub baffles ntawm lub nplhaib bearing. Lub tawb, cov menyuam, thiab lub nplhaib qhia ua ib pawg ntawm cov khoom, uas tuaj yeem sib cais los ntawm lwm lub nplhaib bearings thiab koom nrog cov kabmob sib cais. Cov kabmob no yog ib qho yooj yim rau nruab thiab disassemble, tshwj xeeb tshaj yog thaum nws xav tau kev cuam tshuam ntawm lub nplhaib puab, lub nplhaib sab nraud, thiab lub plhaub plhaub. Xws li cov kabmob feem ntau tsuas yog siv los tiv thaiv cov loads radial, tsuas yog ib kab kab bearings nrog cov nplhaib sab hauv thiab sab nrauv nrog cov npoo tuav tau tuaj yeem tiv taus me me axial loads lossis loj dua axial loads. Feem ntau yog siv rau cov motors loj, tshuab cuab yeej spindles, qag lub thawv, diesel cav crankshaft thiab tsheb, bracket bearing box, thiab lwm yam.
Dab tsi ntawm Loads Tau Tapered Cov Menyuam Bearings Kov
Lub kaum sab xis thiab cov duab ntawm tapered cov menyuam bearings txo qhov kev ntxhov siab los ntawm kev sib xyaw ntawm radial thiab axial loads. Radial thiab axial loads feem ntau ua ke los tsim cov khoom sib txawv ntawm cov kabmob sib dhos. Lub peev xwm los tswj cov angular loads thiab hloov angular loads - ua rau tapered roller bearings indispensable rau ntau yam kev tsim thiab kev lag luam. Cov duab tapered tseem ceeb concentrates radial thiab axial loads rau hauv ib qho kev sib koom ua ke uas yooj yim dua harnessed. Cov angular loads twg tuaj yeem siv tau yog nyob ntawm lub kaum ntse ntse ntawm cov kabmob tapered. Lawv tuaj yeem siv ntau yam ntawm cov rog los ntawm kev teeb tsa ob lossis ntau dua tapered bearings.
Lub steepness ntawm cov menyuam bearing lub gradient nce lub thrust / axial load nws muaj peev xwm lis, thaum lub kaum sab xis ntiav tsub kom lub radial load peev xwm. Raws li cov radial load nce, cov kabmob muaj kev ntxhov siab ntau dua rau ob sab ntawm cov kabmob raceways. Lub kaum sab xis ntau txo qhov kev ntxhov siab, txo qhov siab ntawm cov chais. Kev nce axial load ua rau muaj kev ntxhov siab siv rau saum cov chais. Lub kaum sab xis yuav faib lub siab ntau dua rau qhov nruab nrab ntawm cov kabmob thiab tsawg dua rau cov menyuam lawv tus kheej.
Daim ntawv thov ntawm Tapered Roller Bearings
Tapered roller bearing yog siv rau hauv ntau daim ntawv thov kev lag luam. Nws yog qhov zoo tagnrho rau cov kev taw qhia uas yuav tsum tau dhau qhov hnyav hnyav. Nws kuj tseem pom muaj nyob rau hauv cov ntawv thov uas cov loads radial yog qhov tseem ceeb thiab kev sib hloov ceev yog qhov siab.Tapered roller bearings yog qhov tseem ceeb hauv cov haujlwm xws li kev ua liaj ua teb, kev tsim kho, mining, cav thiab cov kiv cua. Nyob rau theem kev lag luam, cov ntawv zeb, cov nroj tsuag cement thiab cov tuam txhab roj yog qee qhov piv txwv ntawm ib puag ncig uas pom cov kabmob tapered roller bearings.
Vim li cas thiaj xaiv Cylindrical Cov Menyuam Bearing hla Radial Pob Bearing
Cylindrical roller bearings zoo ib yam li radial pob bearings nyob rau hauv uas lawv tau tsim los nqa lub radial load thaum txo kev sib txhuam. Cov menyuam cylindrical thiab radial pob bearings tuaj yeem ua haujlwm me me ntawm axial loads nyob ntawm daim ntawv thov thiab tsim sab hauv ntawm cov kabmob.
Feem ntau, cov menyuam bearings muaj peev xwm muaj peev xwm ntau dua li pob bearings ntawm tib qhov loj. Lwm qhov sib txawv tseem ceeb ntawm ob lub bearings yog lawv qhov chaw sib cuag. Rau cov pob bearings, qhov chaw sib cuag yog ib qho chaw uas cov menyuam bearings ntaus ib cheeb tsam loj dua.
Khob Thiab Cone
Lub khob suav nrog lub nplhaib sab nraud uas cov bearings caij. Lub khob hliav qab uas tsis yog-separable muaj xws li lub nplhaib puab, rollers, thiab tawb. Nyob rau hauv txoj kev sib tw uas cov chais ua haujlwm, muaj lub kaum sab xis sib haum rau cov menyuam 'taper. Sab hauv raceway yog hu ua lub khob hliav qab, thaum sab nrauv raceway hu ua khob. Lub tawb, tseem hu ua ib tug retainer, cais cov chais, kom ntseeg tau tias txawm load faib thiab du rotation. Lub kaum sab xis ntawm cov chais, lub khob hliav qab, thiab khob ua kom lawv zoo; lub tawb feem ntau ua hauj lwm rau qhov chaw sib npaug ntawm cov chais thiab tuav lawv ua ke.
Rollers (Axial Thiab Radial Loads)
Tapered cylindrical rollers yog siv rau hauv cov kabmob no. Lub kaum sab xis ntawm kev sib cuag thiab tus naj npawb ntawm cov kab txiav txim siab hom kev thauj khoom thiab lub peev xwm ntawm cov kabmob. Tus naj npawb ntawm cov rollers ntawm cov kabmob tuaj yeem ua rau nws muaj peev xwm thauj khoom.
Cages
Sib txawv dua li cov tawb hauv lwm hom kabmob, feem ntau hom tawb yog tus pin tawb. Raws li ib feem ntawm lub hauv paus ntsiab lus sib dhos, lub tawb pab faib cov menyuam chav nyob.
Lubrication
pab txo kev sib txhuam, suab nrov, cua sov, thiab lwm yam, ntawm cov menyuam thiab cov kev sib tw. Ntau cov roj nplua nyeem tau siv, suav nrog roj hluavtaws, roj av-raws li roj, roj silicone, roj, cov yeeb yaj kiab qhuav, thiab lwm yam.
Cov ntsaws ruaj ruaj
Zoo tiv thaiv cov kabmob los ntawm impeding los ntawm ib puag ncig cov kab mob thiab ya raws. Cov impurities yuav cuam tshuam rau kev ua haujlwm zoo ntawm cov kabmob.
Khoom siv ntawm Tapered Cov Menyuam Bearings
Tapered roller bearings feem ntau yog tsim los ntawm cov hlau zoo hlau, xws li chrome steel lossis stainless hlau. Cov ntaub ntawv no muaj lub zog siab, durability, thiab tsis kam hnav thiab corrosion. Chrome steel yog cov khoom siv feem ntau siv rau cov menyuam bearings vim nws qhov siab hardness, toughness, thiab qaug zog kuj. Nws kuj muaj qhov zoo ntawm qhov ruaj khov thiab tuaj yeem tiv taus qhov kub thiab txias thiab poob siab. Stainless hlau yog lwm yam khoom nrov rau tapered menyuam bearings, tshwj xeeb tshaj yog nyob rau hauv daim ntawv thov uas corrosion kuj tseem ceeb heev. Lwm cov ntaub ntawv, xws li ceramic lossis yas, kuj tseem siv tau rau hauv cov ntawv tshwj xeeb uas yuav tsum muaj qhov kub thiab txias lossis tshuaj tiv thaiv. Txawm li cas los xij, cov ntaub ntawv no tsis tshua siv vim lawv cov nqi ntau dua thiab muaj tsawg dua.
Lub tswv yim kom tsis txhob puas Tapered Cov Menyuam Bearings
Kev teeb tsa
Muaj ob peb lub ntsiab lus tseem ceeb uas yuav tsum tau xav txog thaum txhim kho lossis kho koj cov tapered roller bearings. Yog tias cov kabmob raug poob, xyuas kom meej tias nws raug tshuaj xyuas qhov kev puas tsuaj los yog deformation vim hais tias cov kabmob uas muaj lub tawb yuav tsum tau muab pov tseg. Nws kuj tseem ceeb heev uas yuav tsum siv cov cuab yeej txhim kho kom raug. Siv cov cuab yeej nyuaj xws li cov khoom siv tawv tawv, cov punches hauv nruab nrab lossis tooj dag tuav tuaj yeem ua rau deformation thiab spalling. Tsis tas li ntawd, ceev faj ntawm compression thaum lub sij hawm installation vim nws tuaj yeem ua rau skewing thiab deformation uas yuav ua rau lub tawb puas.
Lwm qhov kev tawm dag zog kom tsis txhob muaj kev ua si ntau dhau thiab tsis raug, ua rau muaj kev sib sib zog nqus sib sib zog nqus ntawm ib sab ntawm txoj kev sib tw lossis lub khob hliav qab. Thaum hloov kho, qhov kub thiab txias ntau dhau tuaj yeem ua rau spalling, ua rau muaj kev puas tsuaj sai rau txoj kev sib tw thiab cov menyuam. Kev huv huv thaum lub sij hawm teeb tsa yog qhov tseem ceeb tshaj plaws vim tias cov khib nyiab lossis cov kab mob sib kis tuaj yeem ua rau muaj qhov bruises lossis me me indentations nyob rau hauv txoj kev raceway, zoo heev txo cov kabmob lub neej.
Lubrication
Yuav luag txhua qhov kev ua txhaum cai tuaj yeem zam nrog lubrication kom raug. Tsis siv cov roj nplua nyeem txaus tuaj yeem ua rau cua sov lossis vuam puas nyob ze ntawm qhov kawg ntawm lub khob hliav qab lossis ntawm qhov loj ntawm cov chais, raws li lawv tuaj rau hauv kev sib cuag. Lwm qhov tshwm sim ntawm lubrication tsis txaus yog lub peev xwm rau tev lossis micro-spalling, uas sai sai tshem tawm cov khoom sib tw.
Moisture
Kev puas tsuaj dej, los ntawm ib puag ncig los yog los ntawm cov hlau 'hws', yog ib qho teeb meem uas yuav tsum tau ua tib zoo saib xyuas. Yog tias cov dej noo nkag mus rau hauv cov kabmob thaum lub sijhawm teeb tsa lossis hloov kho, lossis tsuas yog los ntawm qhov kub thiab txias, nws tuaj yeem ua rau xeb lossis etching nyob ib ncig ntawm txoj kev sib tw. Etching tshwm sim raws li cov kab tsaus nti uas khiav ncig ntawm txoj kev sib tw thiab zoo ib yam li tev lossis micro-spalling, nws tuaj yeem ua rau cov khoom tawg tawm thaum lub sijhawm ua haujlwm, uas ua rau muaj kev puas tsuaj loj rau tsis yog cov kabmob xwb tab sis rau cov tshuab thiab.
Lub tswv yim rau Packing Tapered Roller Bearing
Nrog tes
Ntxuav koj txhais tes kom huv si los yog muab tso rau ntawm ib nkawm hnab looj tes tshiab.
Muab cov roj tso rau ntawm qhov loj ntawm lub pob golf rau hauv lub xib teg ntawm ib txhais tes.
Siv koj txhais tes los thawb qhov kawg ntawm cov kabmob puab lub nplhaib sib dhos rau hauv cov roj. Qhov no tso cai rau cov roj compressed ntawm cov menyuam, tawb thiab lub khob hliav qab.
Txuas ntxiv thawb cov roj mus rau hauv qhov kawg loj thiab tig tag nrho lub khob sib dhos kom txog thaum cov roj sib npaug sib npaug ntawm qhov kawg me ntsis.
Siv cov roj ntau dhau rau sab nraud ntawm cov kabmob puab lub nplhaib sib dhos.
Siv lub tshuab roj packer
Ntxuav koj txhais tes kom huv si los yog muab tso rau ntawm ib nkawm hnab looj tes tshiab.
Muab cov kabmob puab lub nplhaib sib dhos me me kawg rau hauv cov roj ntim khoom funnel.
Plug lub qhov nyob rau hauv qhov loj kawg ntawm cov kabmob puab nplhaib sib dhos nrog ib tug tapered retainer.
Nias lub tapered retainer kom ruaj khov. Qhov no tso cai rau cov roj compressed ntawm cov menyuam, tawb thiab lub khob hliav qab.
Siv cov roj ntau dhau rau sab nraud ntawm cov kabmob puab lub nplhaib sib dhos.
Yuav ua li cas xaiv Tapered Roller Bearings kom raug
Nrhiav Bearing Loads Thiab Load Capacities
Ua ntej, nkag siab txog hom thiab qhov loj ntawm cov kabmob uas koj daim ntawv thov yuav ua rau cov kabmob. Pob bearings feem ntau yog qhov zoo tshaj plaws rau kev thauj khoom me me mus rau nruab nrab. Cov ntawv siv hnyav feem ntau ua haujlwm zoo tshaj plaws nrog cov menyuam bearings.
Paub koj daim ntawv thov RPM
Txiav txim RPM rau koj daim ntawv thov. Kev kub ceev (RPM) feem ntau yog qhov zoo tshaj plaws rau pob bearings thiab qis qis feem ntau yog qhov zoo tshaj plaws rau cov menyuam bearings.
Bearing Runout Thiab Stiffness Factors
Koj kuj xav txiav txim siab seb hom bounce koj daim ntawv thov tso cai. Yog tias daim ntawv thov tso cai tsuas yog me me sib txawv, ces pob bearings yuav yog qhov zoo tshaj plaws rau koj xaiv.
Nrhiav txoj kev lubrication uas haum koj cov kev xav tau ntawm cov kabmob
Rau cov ntawv thov kev kub ceev, suav koj tus nqi n * dm, yog tias nws siab dua li cov roj qhov siab tshaj plaws, cov roj yuav tsis muab lubrication txaus. Muaj lwm txoj kev xaiv xws li roj pos huab. Rau cov ntawv thov ceev qis, cov roj da dej yog qhov kev xaiv zoo.
Yuav ua li cas rau nruab Tapered Cov Menyuam Bearings
Qhov haum ntawm lub nplhaib puab ntawm plaub-kab tapered cov menyuam bearing thiab lub caj dab yob feem ntau nrog clearance. Thaum txhim kho, ua ntej tso cov kabmob rau hauv cov kabmob vaj tsev, thiab tom qab ntawd muab cov kabmob vaj tse rau hauv phau ntawv xov xwm.
Lub nplhaib sab nraud ntawm ob lossis plaub-kab tapered cov menyuam bearing thiab cov kabmob lub thawv lub qhov tseem tau txais kev sib haum xeeb, thiab lub nplhaib sab nrauv A yog thawj zaug ntsia rau hauv cov kabmob. Cov cwj pwm raug luam tawm ntawm lub nplhaib sab nraud, lub nplhaib sab hauv, thiab sab hauv thiab sab nraud spacers thaum tawm hauv lub Hoobkas. Lawv yuav tsum tau nruab rau hauv cov kabmob vaj tse nyob rau hauv qhov kev txiav txim ntawm kev npaj ntawm cov cim cim. Tsis interchangeable los tiv thaiv kev hloov hauv bearing clearance.
Tom qab tag nrho cov khoom tau nruab rau hauv lub thawv bearing, lub nplhaib puab thiab lub nplhaib sab hauv, lub nplhaib sab nraud, thiab lub nplhaib sab nraud yog axially nruj.
Ntsuas qhov dav ntawm qhov sib txawv nruab nrab ntawm lub ntsej muag kawg ntawm lub nplhaib sab nrauv thiab lub hau npog ntawm lub thawv bearing los txiav txim siab qhov tuab ntawm cov khoom siv sib txuas.
Peb lub Hoobkas
LUOYANG TEDIN BEARING CO., LTD. -- muaj cov txheej txheem tsim khoom ntawm high-end rolling bearings, tsom rau R & D high-end bearings, customized bearings, thiab tshwj xeeb tsim precision bearings tau nyob rau hauv txoj hauj lwm ntawm Tuam Tshoj.
TEDIN muaj ntau yam tsis siv neeg ua cov kab thiab kev txhawb nqa rau cov menyuam bearings siab. Qib precision ntawm precision bearings tuaj yeem ncav cuag P5, P4, P2. TEDIN pab ntau tus neeg muas zaub tshwj xeeb tshaj yog nyob rau hauv precision tshuab cuab yeej, dov mills, precision rotary ntxhuav, industrial robots, high-speed railway, khiav tsheb, tub rog Radar, nyoob hoom qav taub phom, cua zog, thiab hnub ci zog, thiab lwm yam.
Peb Daim Ntawv Pov Thawj
FAQ
Peb lub tuam txhab yog ib qho ntawm cov tapered roller bearings manufacturers hauv Suav teb. Xav tias dawb rau cov lag luam wholesale siab zoo tapered menyuam bearings muag ntawm no los ntawm peb lub hoobkas. Tsis tas li, kev pabcuam customized muaj.
