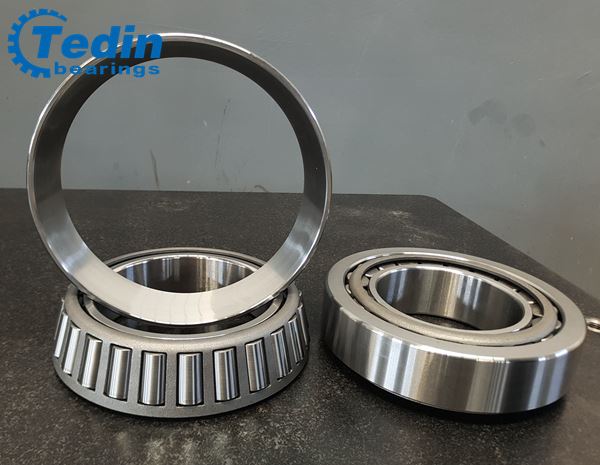

Precision spindle bearing

Ib kab tapered menyuam bearing 32020 nyob rau hauv high precision qib, feem ntau yog siv raws li spindle bearing ntawm tshuab cuab yeej, thiab teem nyob rau hauv khub.

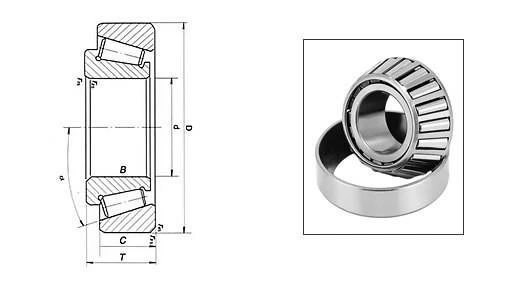

Precision spindle bearing 32020P4 Precision tapered roller bearing 32020 P4

Hom kabmob	Ib kab tapered menyuam bearing
Bearing NO	Tshiab code	32020-X
qub code	32020X
Basic Dimensions Unit: mm	d (Inner diameter)	100
D (Sab nraud Diameter)	150
B (Qhov siab)	32
C	24
T	32
r1/r2	2
r3/r4	1.5
a	33
d1	126.6
Basic ntsuas loads Unit: N	Basic Dynamic Rating Load, radial (Cr)	173000
Basic Static Rating Load, radial (Cor)	285000
Limit Speeds (rpm)	Limit Speed (nG)	4500
Reference ceev (nB)	2900
Fatigue txwv load, Raidal (Cur)	33500
Cov qauv hloov tau	T4CC 100
Qhov hnyav (Mass)	1, 94kg
Paub meej	Ib kab tapered menyuam bearing, metric series

TEDIN tsim ntau yam precision tapered menyuam bearings, ob qho tib si hauv metric series thiab nti series. Daim ntawv thov ntawm high-precision tapered menyuam bearings yog dav heev. Peb lub tuam txhab tau tsim thiab tsim kev nplua nuj nyob rau hauv kev tsim precision tapered cov menyuam bearings siv rau high-ceev CNC precision tshuab cuab yeej, high-end rotary ntxhuav, cua fais fab kis, rail tsheb thauj mus los khoom, shield tshuab cutter hau, thiab lwm yam kev siv.

Tedin muaj tag nrho cov kev tswj xyuas zoo rau peb cov khoom, raws li ISO9001: 2015. Txhua txheej txheem txheej txheem yog ua tib zoo ua tib zoo xyuas thiab xyuas nruj me ntsis raws li cov txheej txheem yuav tsum tau: raw khoom, forging, kho cua sov, tig, sib tsoo, superfinishing, assembling, thiab kos thiab pob.

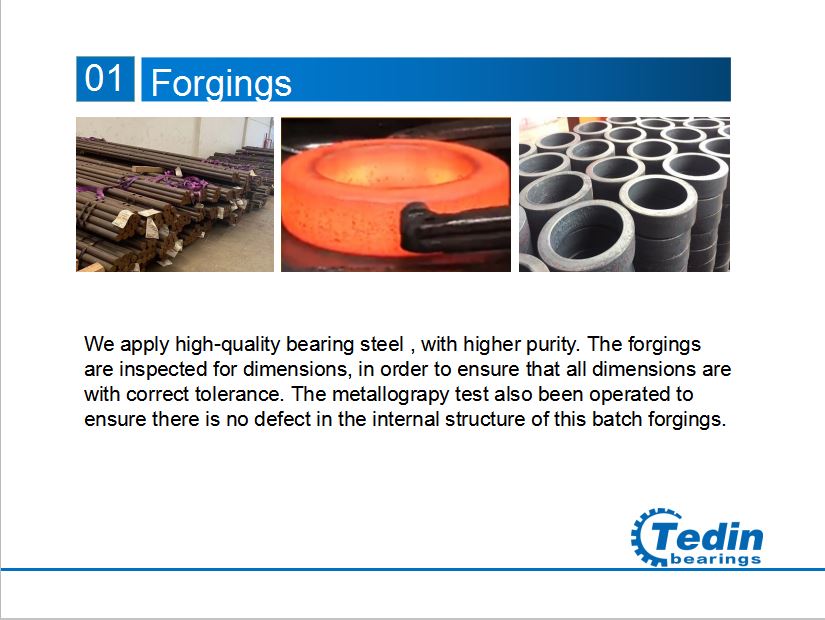

Production and Inspection Process of tapered roller bearing 1

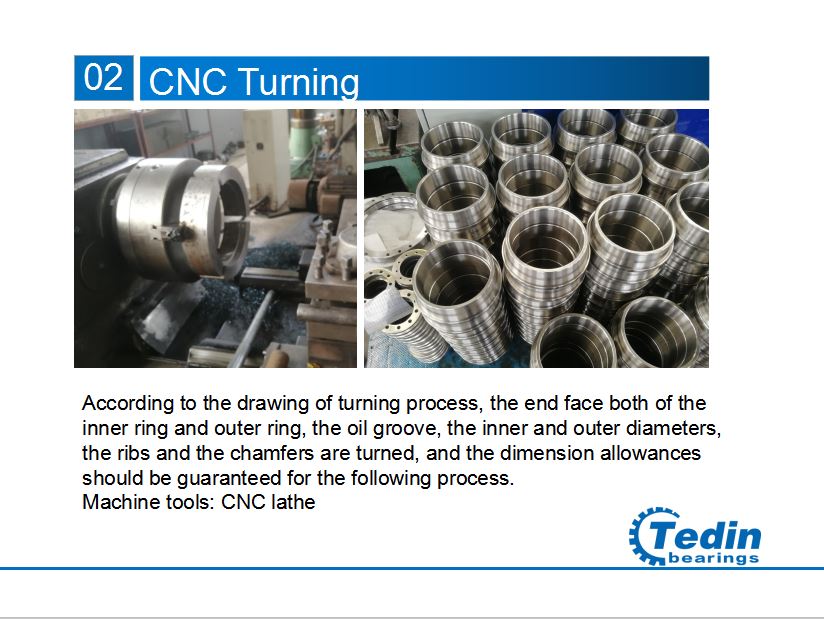

Production and Inspection Process of tapered roller bearing 3

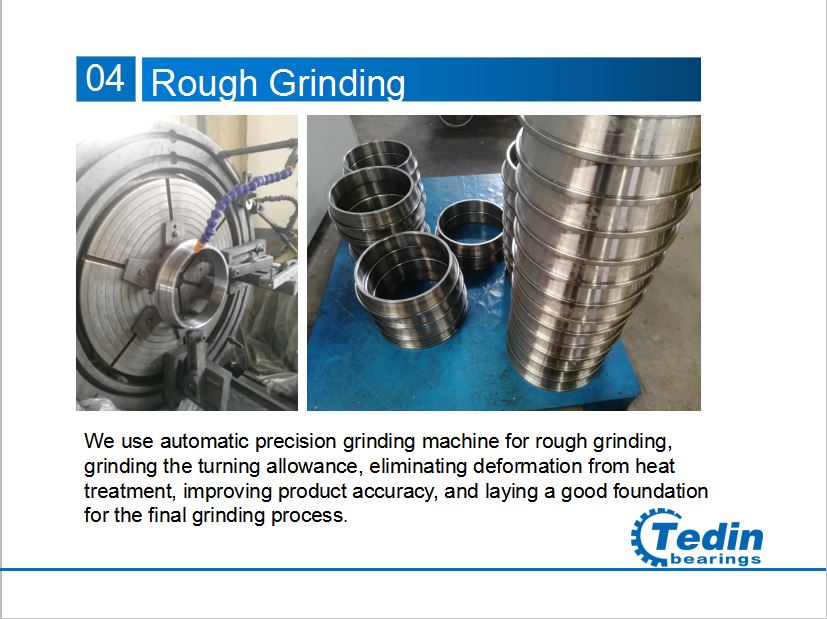

Production and Inspection Process of tapered roller bearing 4

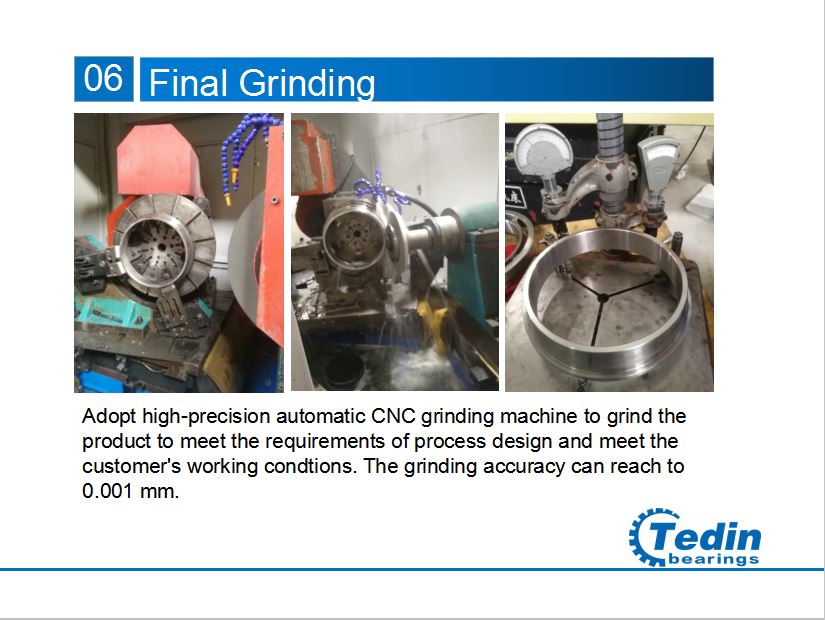

Production and Inspection Process of tapered roller bearing 6

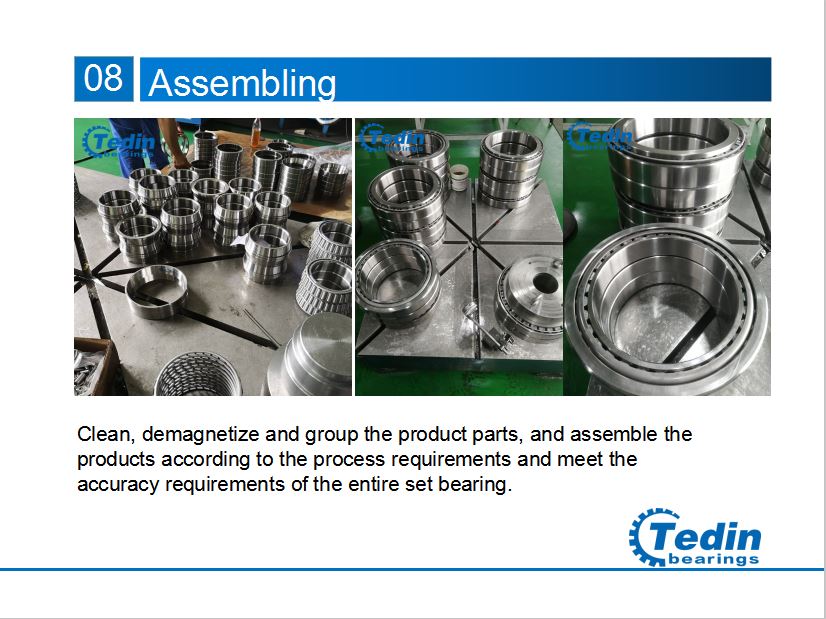

Production and Inspection Process of tapered roller bearing 9

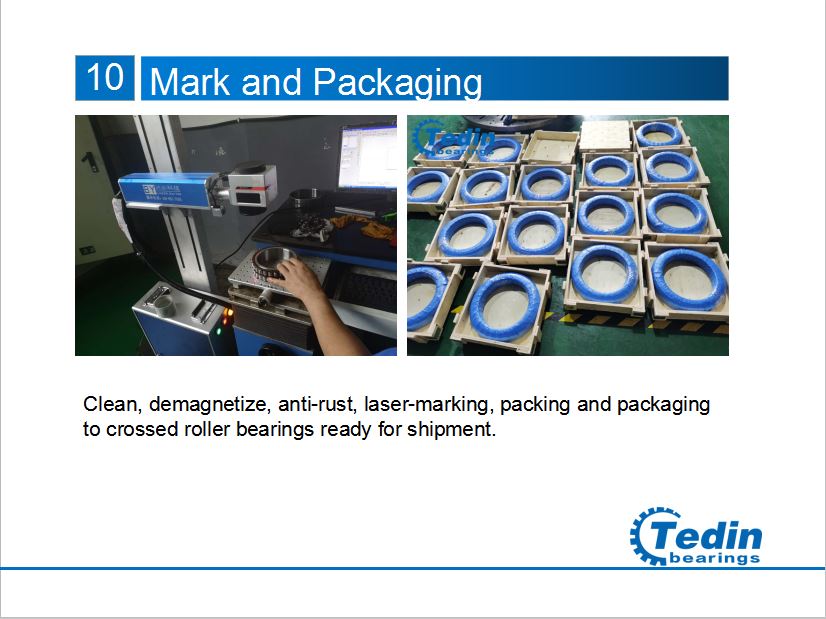

Production and Inspection Process of tapered roller bearing 10

Khoom npe: tapered menyuam bearing, ib kab, ob kab, matched khub, tshuab cuab tam, spindle bearing, plaub-kab, precision.

Cim npe nrov: Precision Spindle Bearing, Tuam Tshoj, manufacturers, hoobkas, customized, kev muag khoom

Qub Code	Tshiab Code	d	D	H	W
2007920	32920	100	140	25
2007120E	32020X	100	150	32
2007120	32020X2	100	150	32.4	1.79
	32020X2/DF/YA	100	150	64	3.57
2007121E	32021X	105	160	35
	32020 X 2 / YA	105	160	35.4	2.34
2007122E	32022X	110	170	38
	32022	110	170	38	3.01
	32022/ PAB	110	170	86	6.3
2007124E	32024X	120	180	38
2007126E	32026X	130	200	45
2007928	32928	140	190	32
2007128E	32028	140	210	45	5.14
2007128E	32028X	140	210	45
2007930	32930	150	210	38
2007130E	32030X	150	225	48
2007932	32932	160	220	38
2007132E	32032X	160	240	51
	32032X2	160	240	51.5	7.41
2007934	32934	170	230	38
2007134E	32034	170	260	57	10.5
2007134E	32034X	170	260	57
2007936	32936	180	250	45
	32036	180	280	64	14
2007136E	32036X	180	280	64
2007938	32938	190	260	45
2007138E	32038X	190	290	64
2007938	32938	190	260	45	6.76
2007940	32940	200	280	51
2007140E	32040X	200	310	70
2007944	32944	220	300	51.5
2007144E	32044X	220	340	76
2007948	32948	240	320	51.5
	32048	240	360	76.5	23.8
	32048X2A	240	360	76
	32048X2AT171/DBCR275	240	360	171
2007952	32952	260	360	64.5
	32952X2	260	360	64	18.6
	32052X2	260	400	87.7	153
2007956	32956	280	380	64.5
2007956	32956	280	380	70	21
2007956K	32956 / IB 2	280	380	64.5	19.8
2007156	32056X	280	420	87
2007960	32960	300	420	74.5
2007960	32960X2	300	420	76.5	28.7
2007160	32060X	300	460	100
	32060X2	300	460	100.7	55.9
2007964	32964	320	440	76
	32964X2AT195/NWS 375	320	440	195
E2007964	32964X2	320	440	76.5	44.7
2007164	32064X	320	480	100
2007164	32064X2	320	480	100.7	59
2007968	32968	340	460	76
2007968	32968X2	340	460	76.5	34.3
2007972	32972	360	480	76
2007972	32972X2	360	480	76.5	35.9
1097996	32996X3	480	660	115	112
	329/530X2	530	670	100.47	81.3
