Core Performance Yam ntxwv
RE19025 yog positioned raws li ib tug precision - tsom kev daws teeb meem nyob rau hauv lub RE series, muab kev tswj nruj thiab txhim khu kev qha qhov tseeb yam tsis muaj ntxiv loj ntawm cov qauv loj.
Nws yog tshwj xeeb tshaj yog haum rau cov kev siv qhov chaw optimization thiab cov lus tsa suab precision outweigh huab load yuav tsum, enabling ntau npaum tag nrho system tsim.
Txo tus qauv Deflection
Optimized roller contact geometry txhim kho kev tiv thaiv rau lub sijhawm tilting yam tsis muaj qhov dav dav dav.
Tus cwj pwm Torque tsis tu ncua
Tswj kev tsim sab hauv pab tswj kom ruaj khov rotational torque, txhawb kev pib du -tshem tawm suab hauv cov txheej txheem.
Yooj yim Mounting Interface
Lub nplhaib sab nraud txhawb nqa ncaj qha mounting, txo qhov kam rau ua pawg- thaum lub sijhawm teeb tsa.
Ntev -Lub Sij Hawm Dimensional Stability
Tsim los tswj qhov tseeb tshaj qhov kev pab cuam lub neej ntev hauv cov cuab yeej precision.

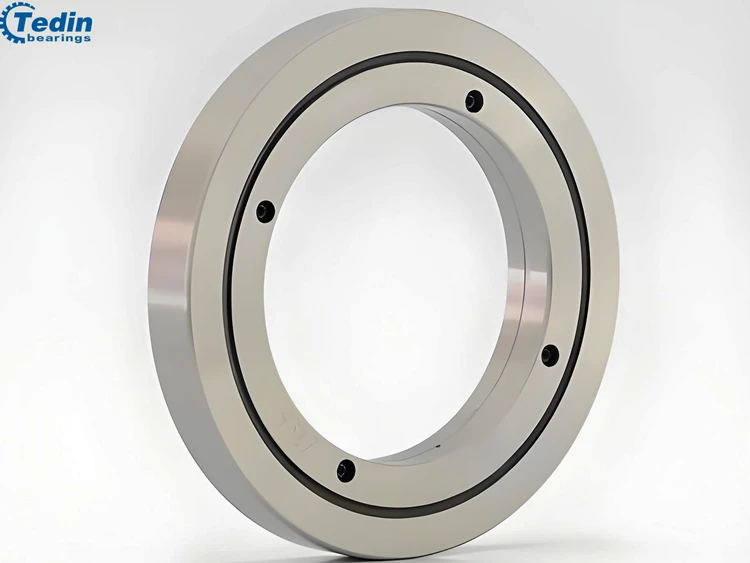

Technical Parameters - RE19025
| Inner Diameter (d) | 190 hli |
| Sab nraud txoj kab uas hla (D) | 240 hli |
| Roller Pitch Diameter (Dpw) | 2 19mm |
| Bearing Dav | 25 mm |
| Chamfer (rmin) | 1 |
| Lub xub pwg loj (ds) | 202 |
| Lub xub pwg nyom (Dh) | 222 |
| Basic Load Rating (Radial) Cr | 41,7kn ua |
| Basic Load Rating (Radial) Cor | 85,9kn ua |
| hnyav | 2, 99kg |
Xyuas Ntau Hom RB Hla Cov Menyuam Bearing
RE19025 Hla Cov Menyuam Bearing - FAQ
Vim li cas cov kabmob xav tias tawv tom qab kev teeb tsa?
Kev sib hloov nruj feem ntau yog tshwm sim los ntawm kev thauj khoom ntau dhau, kev sib tsoo ntawm lub ncej thiab vaj tse, lossis kev sib kis tau qhia thaum sib dhos. Kev txheeb xyuas qhov tseeb ntawm kev txhim kho thiab ua kom qhov chaw huv huv installation feem ntau daws qhov teeb meem no.
Puas yog nws ib txwm ua rau kev hloov torque hloov lub sijhawm?
Kev hloov pauv me ntsis ntawm lub zog thaum lub sijhawm pib ua haujlwm - nyob rau lub sijhawm yog qhov qub. Txawm li cas los xij, tsis tu ncua torque nce feem ntau qhia tau hais tias mounting distortion, lubricant degradation, los yog txawv txav loading tej yam kev mob uas yuav tsum tau soj ntsuam tam sim ntawd.
Yuav ua li cas yog RE19025 overloaded?
Overloading yuav ua rau deformation mus tas li ntawm rollers lossis raceways, ua rau txo qhov raug thiab ua haujlwm luv luv. Feem ntau, kev puas tsuaj yuav tsis pom tam sim ntawd tab sis yuav tshwm sim raws li kev vibration lossis qhov chaw ua haujlwm yuam kev thaum lub sijhawm ua haujlwm.
Cov teeb meem kev saib xyuas dab tsi uas feem ntau tsis saib xyuas?
Cov neeg siv feem ntau saib xyuas lub sijhawm ua haujlwm ntawm mounting ntsia liaj qhov rooj torque thiab lubricant mob. Loosened bolts los yog degraded roj tuaj yeem cuam tshuam rau kev ua haujlwm ntev ua ntej pom qhov tsis ua haujlwm.
