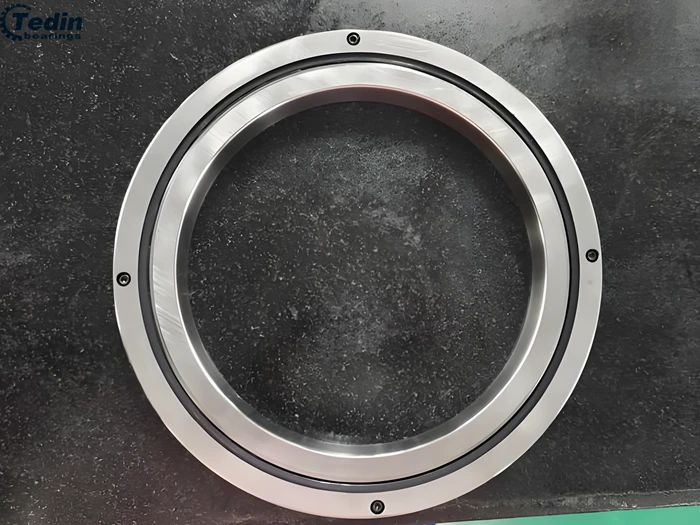

Vim li cas Chouse RB20035 Hla Cov Menyuam Bearing?
- RB20035 yog tsim los rau hnyav-lub luag haujlwm axial thiab radial kev txhawb nqa nyob rau hauv nruab nrab- txoj kab uas hla hneev taw, muab qhov sib npaug ntawm qhov muaj peev xwm thauj khoom thiab smoothness uas haum rau ob qho tib si kev lag luam automation thiab kev ntsuas qib siab.
- Nws ruaj khov preload, nruj qauv, thiab me me ntoo khaub lig-section ua rau nws txhim khu kev qha txawm nyob rau hauv confined mounting qhov chaw.
Compact qauv nrog integrated puab nplhaib rau txhim kho concentricity
Optimized roller spacing rau qhov sib xws torque thiab du khiav
Tsis tshua muaj kev sib txhuam sib txawv, zoo tagnrho rau kev rov ua dua lossis kev sib hloov tas mus li
ruaj khov preload rau qhov tseeb qhov tseeb
Technical Parameters
| Qauv | RWB 20035 |
| Sab hauv Dia (mm) | 200 |
| Sab nraud txoj kab uas hla (mm) | 295 |
| Roller Pitch Diameter (Dpw) | 247.7 |
| Dav (mm) | 35 |
| Chamfer (rmin) | 2 |
| Lub xub pwg nyom (ds) | 225 |
| Lub xub pwg nyom (Dh) | 270 |
| Basic Load Rating (Radial) Cr (kN) | 151 |
| Basic Load Rating (Radial) Cor (kN) | 252 |
| qhov hnyav (kg) | 9.6 |
| Qib raug | P5 / P4 / P2 (yeem) |
Xyuas Ntau Hom RB Hla Cov Menyuam Bearing
RB20035 Hla Cov Menyuam Bearing - FAQ
Dab tsi ua rau RB20035 txawv ntawm lwm yam RB-series hla cov menyuam bearings?
+
-
RB20035 muaj qhov dav dua qhov dav thiab qhov ruaj khov preload qauv, muab nws nruj dua thiab ua kom lub zog ua haujlwm zoo dua piv nrog cov qauv zoo li nruab nrab - loj RB.
Cov qhab nia raug dab tsi muaj rau RB20035?
+
-
P5, P4, thiab P2 cov qhab nia raug muaj, tso cai rau cov kabmob kom tau raws li qhov yuav tsum tau ua hauv cov neeg hlau, cov cuab yeej semiconductor, thiab cov cuab yeej ntsuas.
RB20035 ua haujlwm li cas raws li qhov hloov pauv lossis cuam tshuam tsis sib xws?
+
-
Tus ntoo khaub lig-roller layout stabilizes torque thiab minimizes elastic deformation, kom ntseeg tau tias kev ua tau zoo ib yam txawm tias thaum thauj cov kev taw qhia hloov nquag.
Puas yog RB20035 muaj nrog cov roj nplaum lossis cov ntsaws ruaj ruaj?
+
-
Yog lawm. Cov kev xaiv muaj xws li cov roj tshwj xeeb, siab - cov roj kub, thiab lub teeb - tiv tauj cov ntsaws ruaj ruaj nyob ntawm qhov xav tau ua haujlwm.
Cov ntawv thov twg tau txais txiaj ntsig zoo tshaj plaws los ntawm RB20035?
+
-
Precision turntables, automation modules, robotic pob qij txha, khoom kho mob, semiconductor theem, thiab siab - cov neeg teb cov tshuab.
